Versatile

The T963 NELA trailer is a unit that stands out for its versatility and ease of use.

Nela

Contact us

Questions? We are here to answer your questions.

    Nela

    Contact us

    Questions? We are here to answer your questions.

      T963 Nela single axle agricultural trailer

      GVW

      1650 kg

      Load capacity

      1250 / 1350 kg

      Three way

      tipping

      Hitch

      The swivel hitch has a Φ35 mm swivel eye and an option of tightening a K50 mm (square) car hitch ball.

      Sides

      The sides are 350 mm high. The T963 trailer can be fitted with 500 mm mesh extension sides.

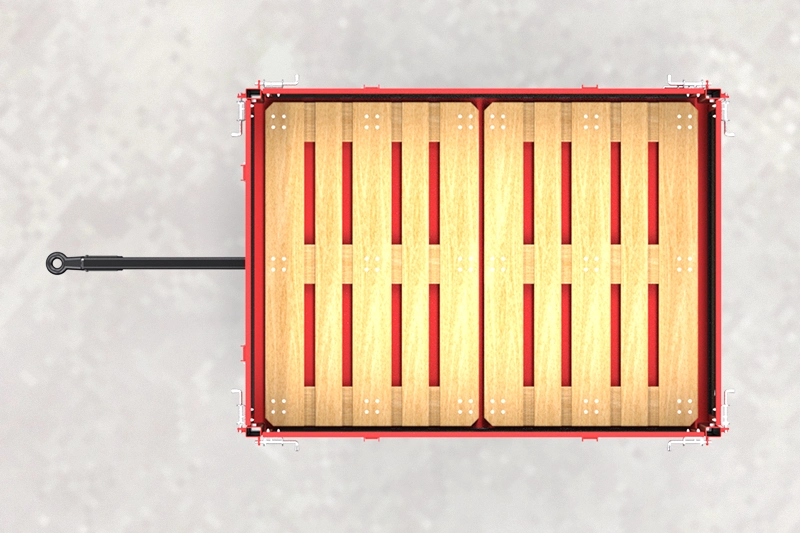

      Pallet width

      The pallet width of the trailer makes it ideally suited for Europallets (1.2 m) and allows storing two of them, making it particularly convenient for everyday use.

      Three way tipping

      Tipping/rear/side tipping angle – 32o/50o – allows easy and convenient unloading in various conditions.

      Lights

      LED lights provide excellent visibility, even in the darkest conditions, making working with the trailer safe and comfortable, even at night.

      Cechy

      Poznaj pozostałe zalety

      Opening the sides

      Opening the sides is simple and efficient, making loading and unloading much easier and safe at the same time.

      Spersonalizuj

      Porównaj i wybierz kolor przyczepy

      Pokazane na zdjęciach wyposażenie może się różnić w zależności od wybranej wersji.

      Technical specification

      T963 NELA trailer

      Model T963/3 T963/2
      Type approval
      EU
      EU
      Approved speed [km/h]
      25
      25
      GVW [kg]
      1650
      1650
      Load capacity [kg]
      1250
      1350
      Approved load capacity [kg]
      1150-1350
      1250-1400
      Brake type
      none
      none
      Tires
      185 R14
      185 R14
      Weight [kg]
      300-500
      250-450
      Total length / Total width / Total height [mm]
      3500/1400/1100
      2700/1400/1100
      Load space length/width/height [mm]
      2540/1240/350
      1740/1240/350
      Tipping/Tipping angle (rear/side)
      28o/50o
      32o/50o

      The technical data of the selected product (including weight/load capacity) may vary depending on the selected equipment.

      Standard equipment

      • Side height 350 mm
      • Drawbar with hitch adapter + hitch eye Φ35 mm
      • Mechanical parking jack
      • Wheel chocks 2 pcs.
      • LED lights

      Optional equipment

      • 500 mm mesh side extensions
      • Tyres 23×8.50-12
      • K50 hitch ball (without approval)
