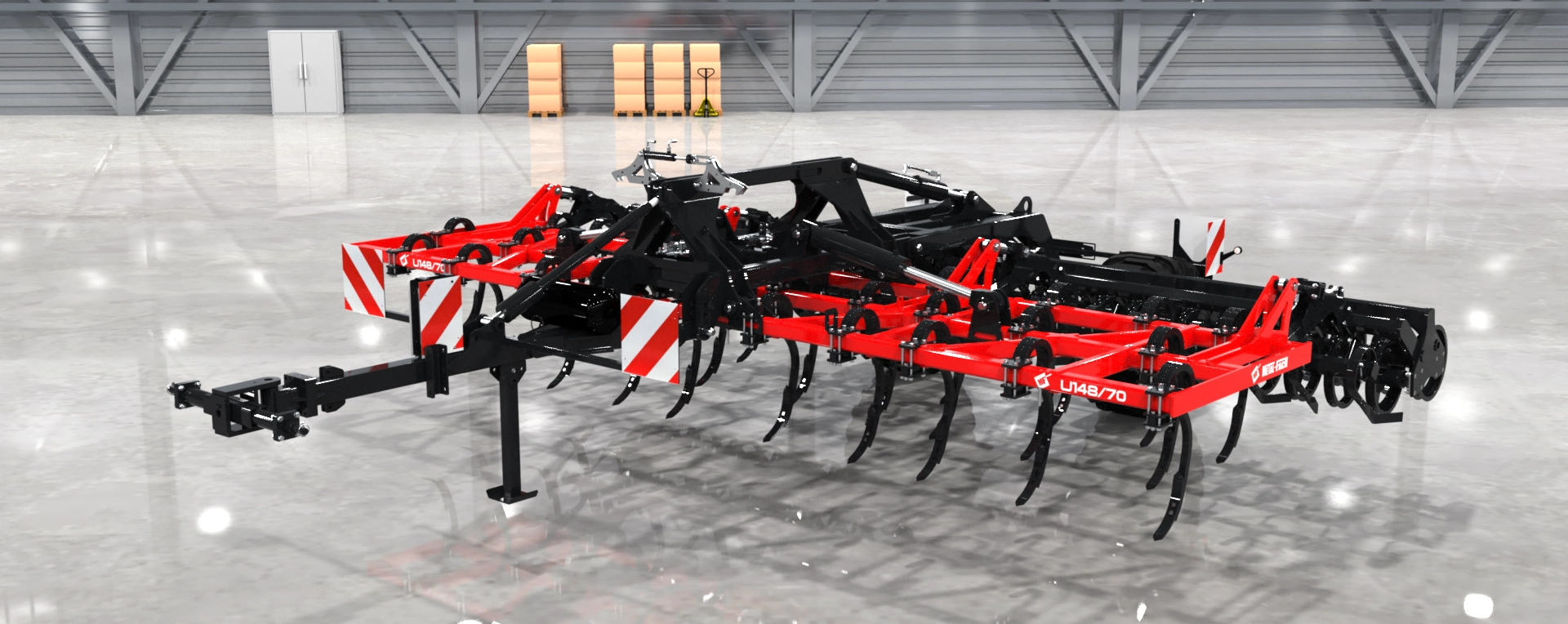

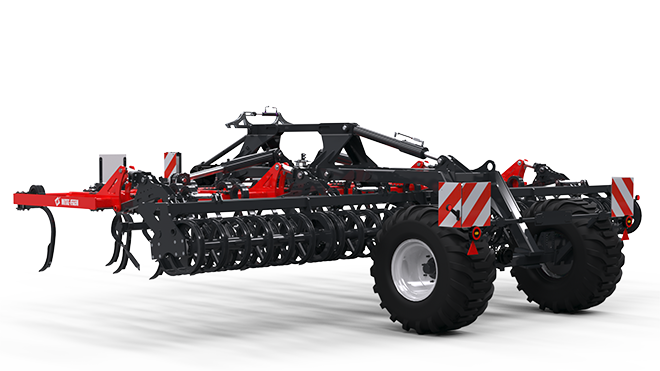

      U148 Cultivator

      Working width

      3,0-7,0 m

      Working depth

      5-18 cm

      Number of teeth

      13-30 szt.

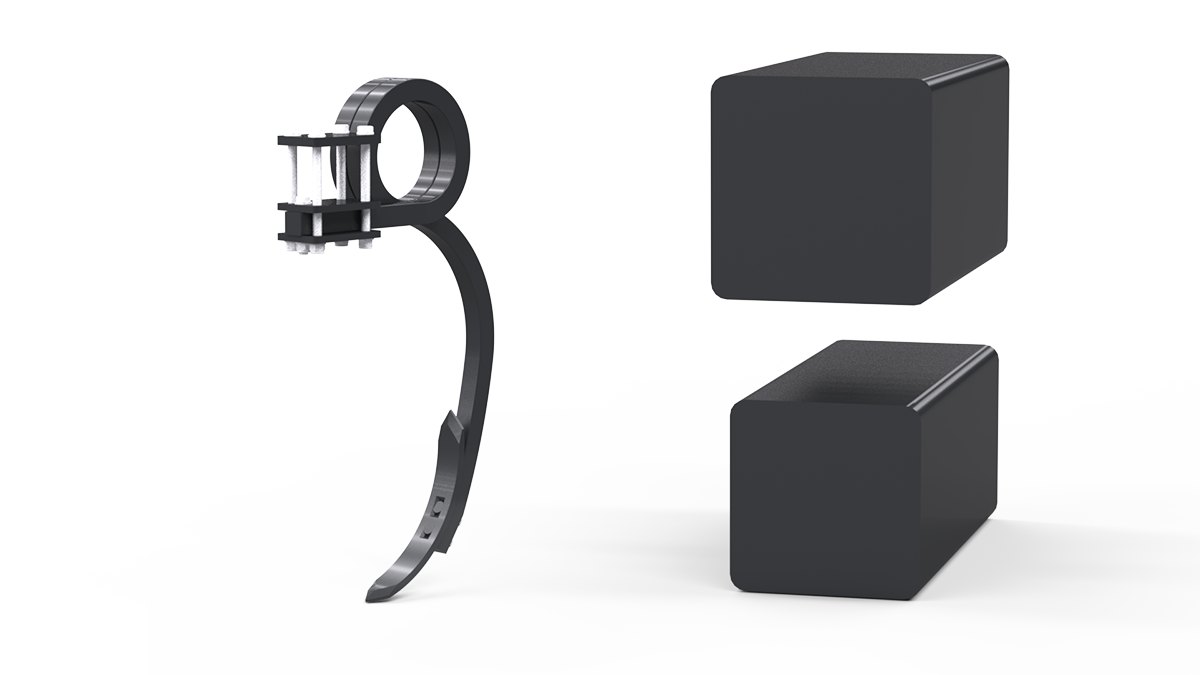

      Due to the type of soil being cultivated, we provide the appropriate cross-sections of the column as standard.

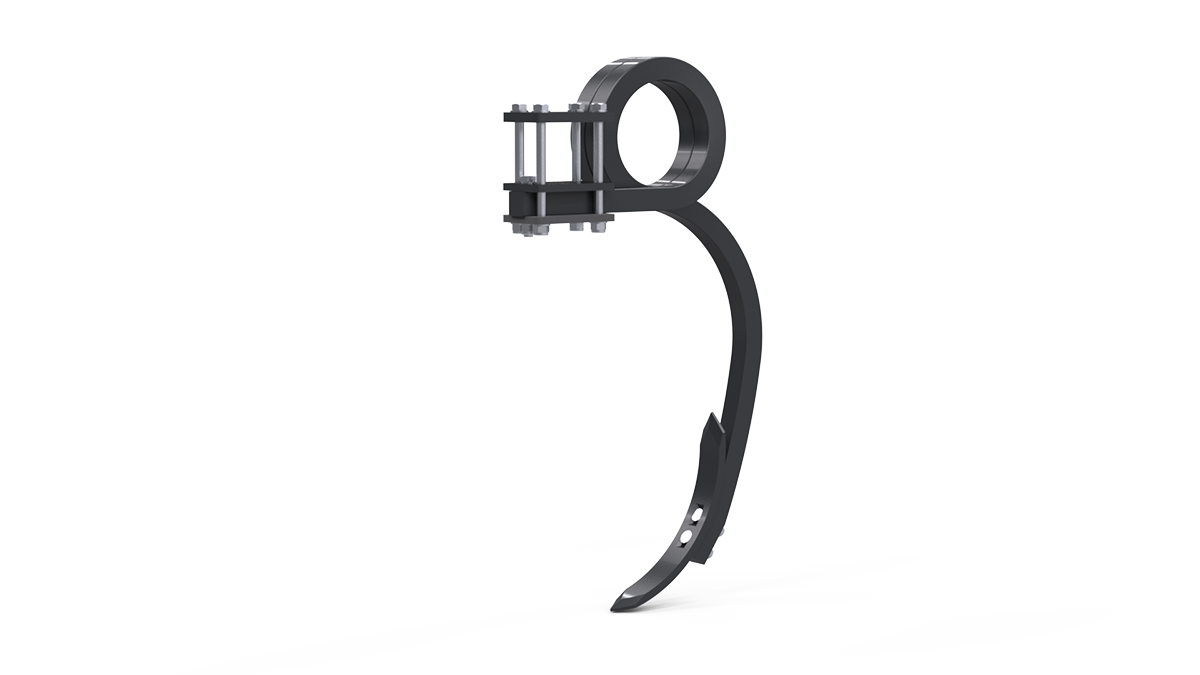

      Pigtail protection – it secures the tooth’s work both in-depth and laterally.

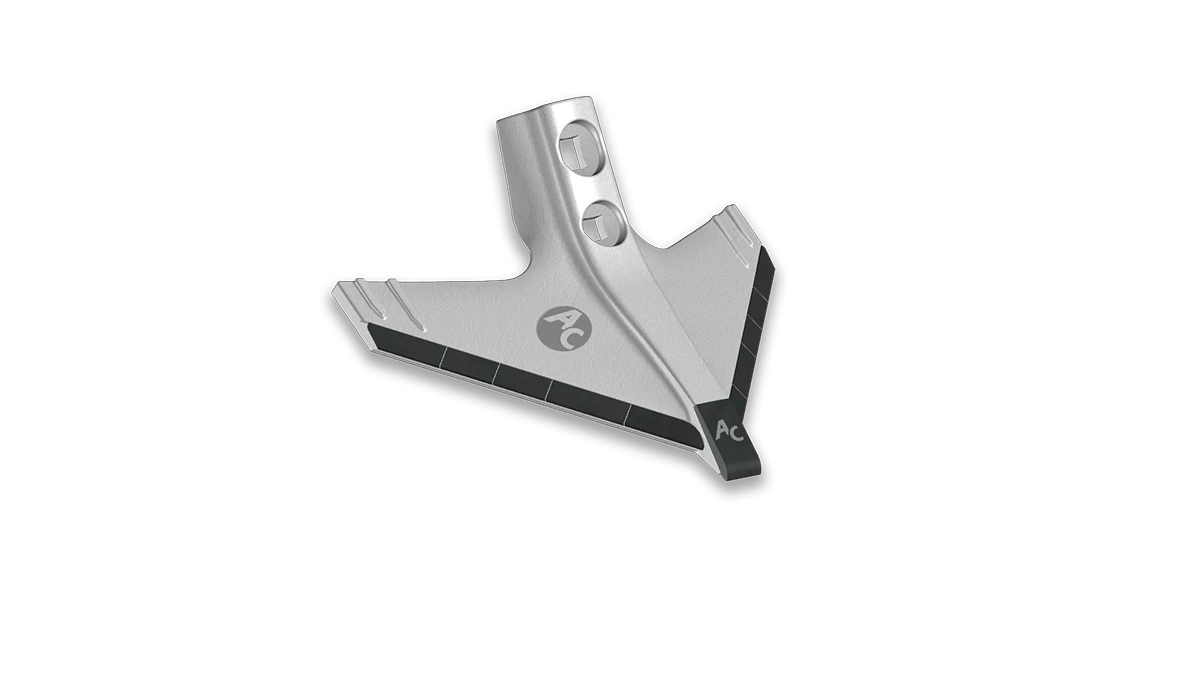

      When using a goosefoot share, you can work with stubble cultivation down to 7cm.

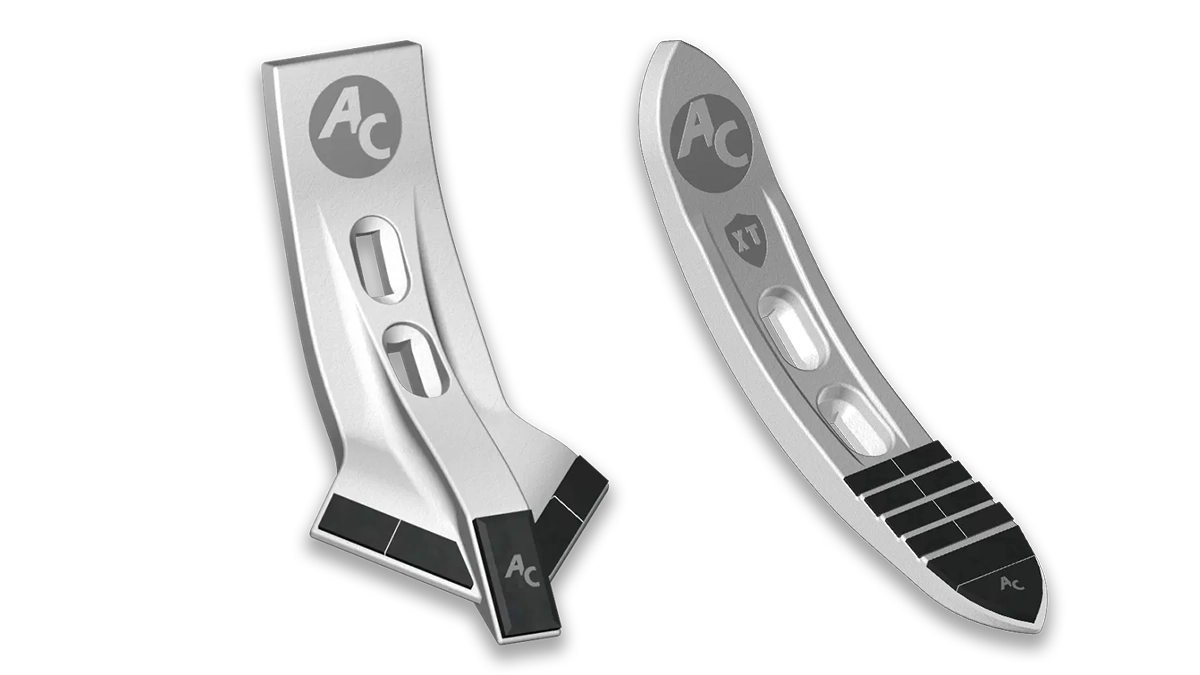

      Utilizing chisels allows for deep soil cultivation above 7cm

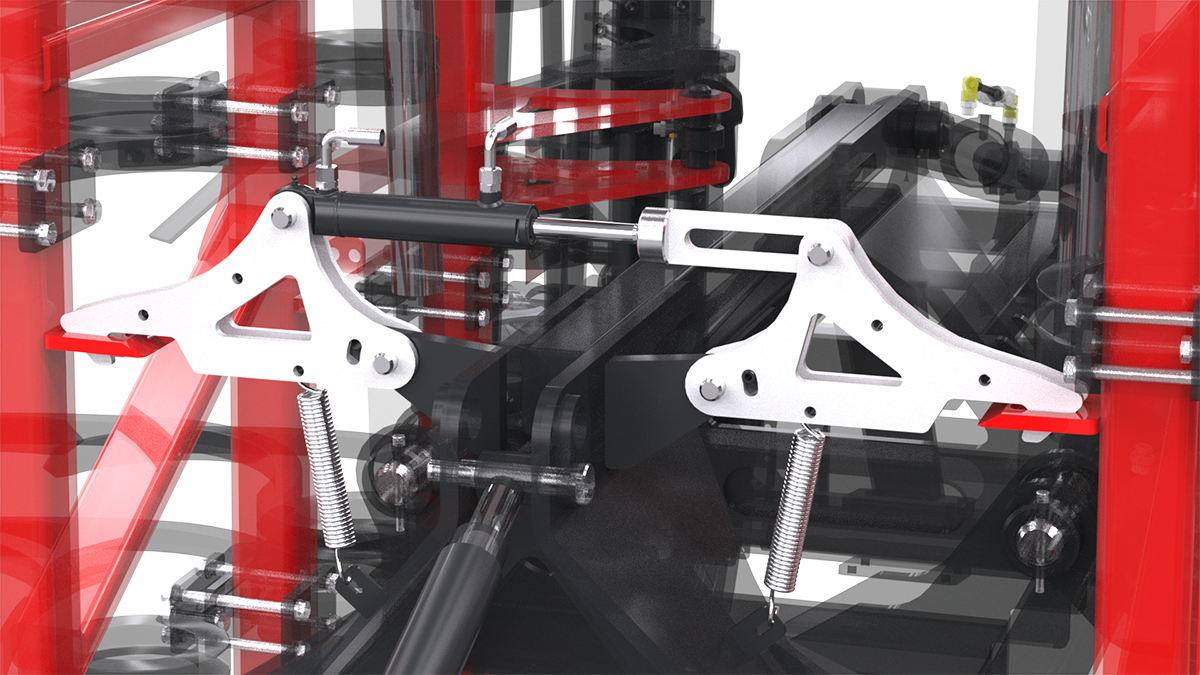

      Hydraulic transport lock

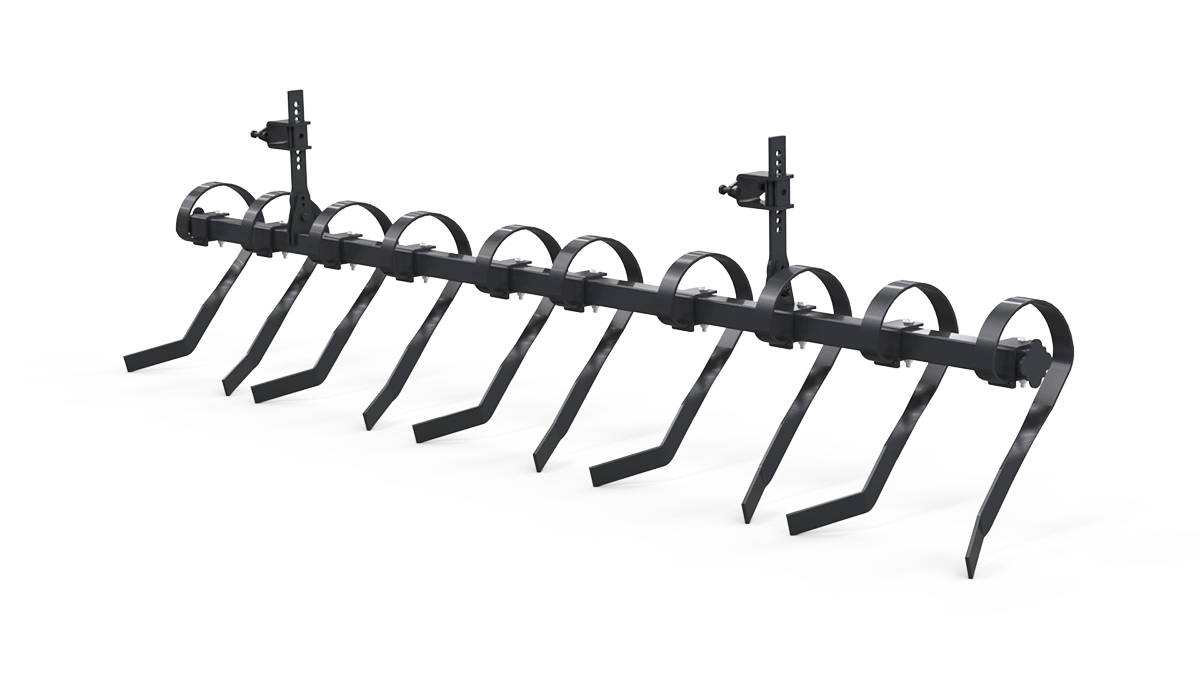

      Rear harrow – evenly distributes crop residues across the entire width.

      3/4 beam – reversible.

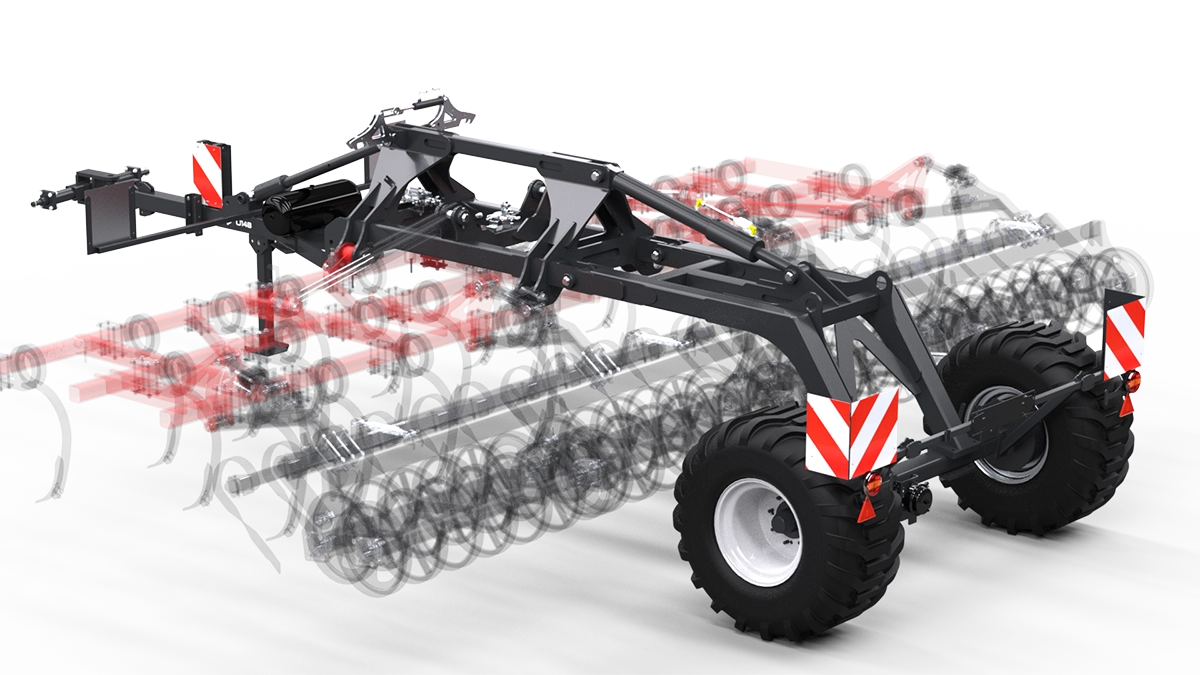

      OPTION: trolley for U148/60, U148/70 versions

      Customise

      Compare and choose your cultivator's colour

      The equipment shown in the photos may vary depending on the version chosen.

      Technical specification

      U148 Cultivator

      Model U148/30 U148/35 U148/40 U148/50 U148/60 U148/70
      Working width [m]
      3,0
      3,5
      4,0
      5,0
      6,0
      7,0
      Transport width/ height/length [mm]
      3000/1500/3500
      3500/1500/3500
      4000/1500/3500
      8200/3000/4000
      8200/3000/4000
      8200/3000/4000
      Working depth [mm]
      5-18
      5-18
      5-18
      5-18
      5-18
      5-18
      Number of teeth [pcs.]
      13
      15
      17
      22
      26
      30
      Power demand depending on the type of soil [HP]
      120 – 180
      150 – 210
      180 – 240
      210 – 250
      240 – 280
      320 – 390

      Standard equipment

      • hydraulic working depth adjustment
      • bolt protection
      • lights and warning signs
      • 3 rows of plough frogs

      Optional equipment

      • Pipe roller ø600
      • Packer roller ø500 – U148/30, U148/60
      • U-box roller ø500 – U148/30, U148/35, U148/60, U148/70
      • Double U-box roller – U148/30, U148/35, U148/50, U148/60, U148/70
      • V-ring roller – U148/30, U148/35, U148/50, U148/60, U148/70
      • DD heavy roller – U148/30, U148/35, U148/50, U148/60, U148/70
      • DD HD heavy roller – U148/30, U148/35, U148/50, U148/60, U148/70
      • String roller – U148/30, U148/35, U148/60, U148/70
      • Crushing and kneading roller – U148/30, U148/35, U148/50, U148/60, U148/70
      • Painting the frame in a color other than the standard – extra charge
