      Home / Products / Cultivators / U740 Seed Disc Cultivator

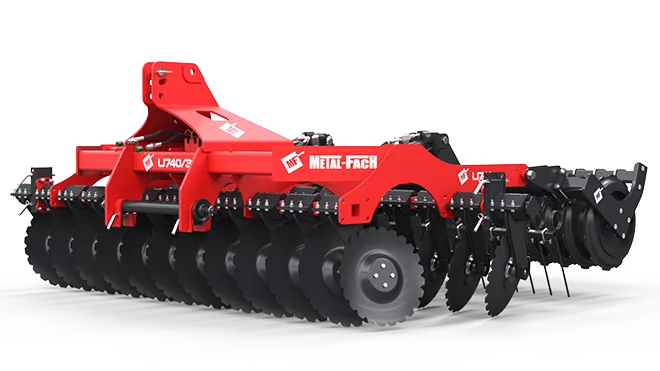

      U740 RAVEN OPTI Seed Disc Cultivator

      Working width

      2,5-5,0 m

      Number of discs

      20-40 pcs.

      Diameter of main discs

      Ø560 mm

      Animation 360o

      Take a closer look

      Poznaj Vikinga z każdej strony, dzięki animacji 360o.

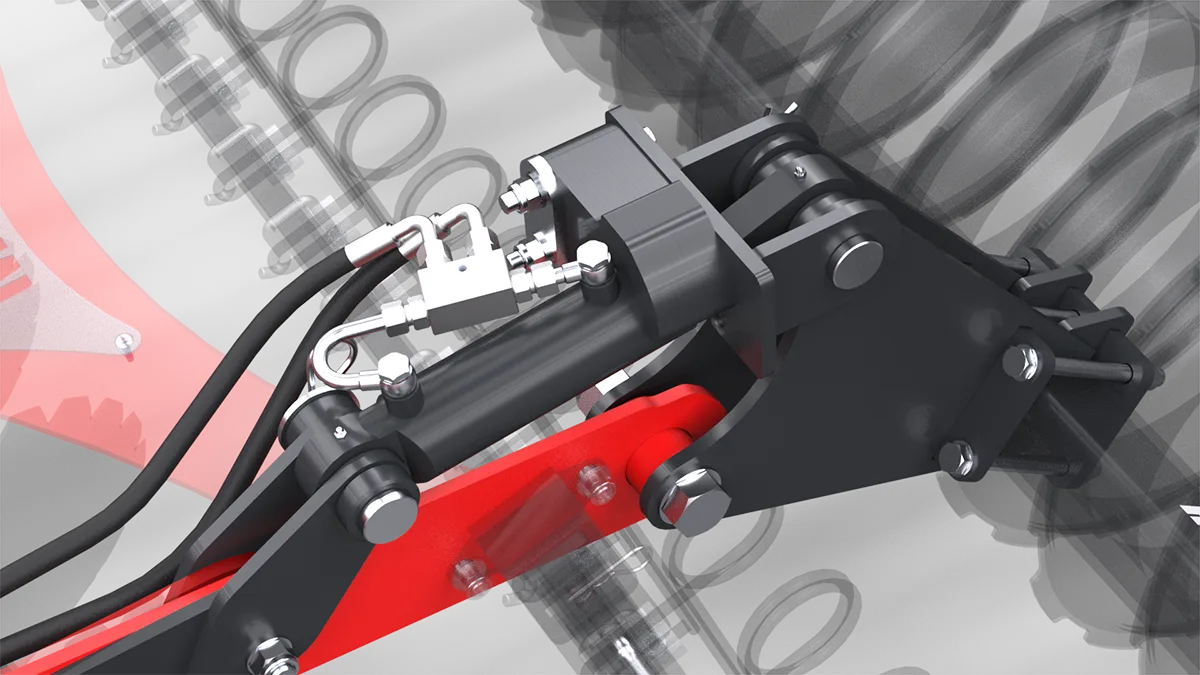

        Hydraulic depth adjustment – ensures precise depth adjustment

        Rubber shock absorbers prevent permanent deformation of the STRENX arm.

        SKF maintenance-free hubs ensure long and trouble-free operation

        STRENX-type disc support facilitates the transport of soil masses between the rows of discs, especially when dealing with a large amount of crop residues

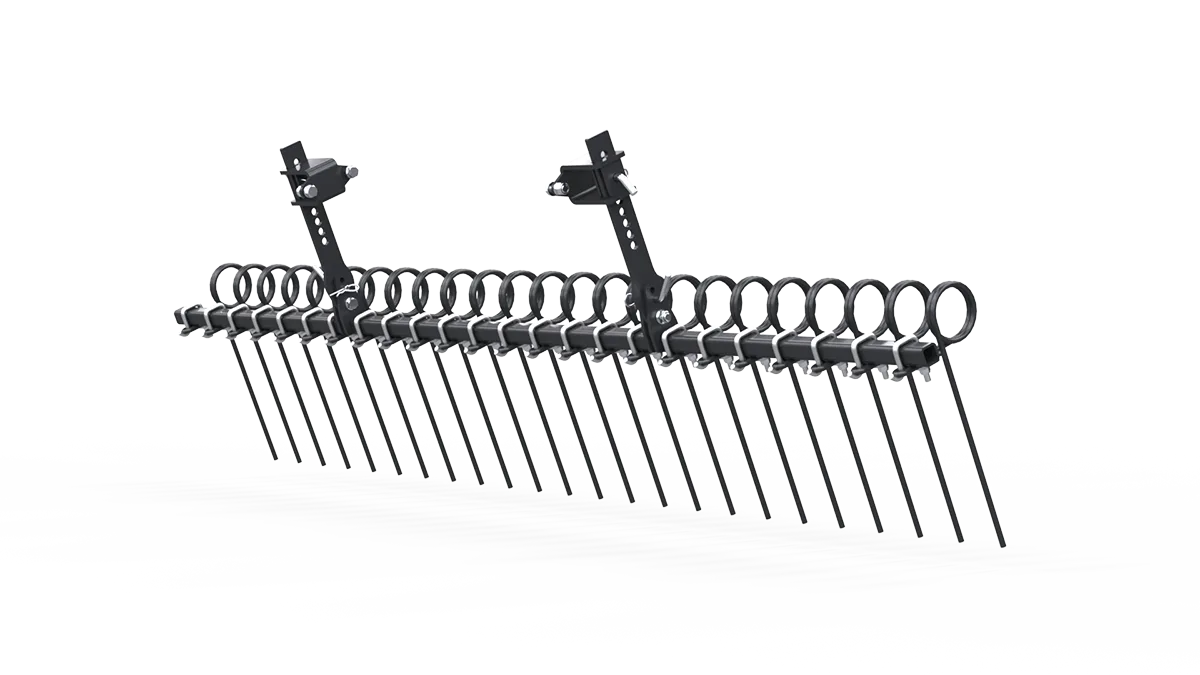

        Scrapers – direct the soil under the discs and under the rollers for excellent crumbling

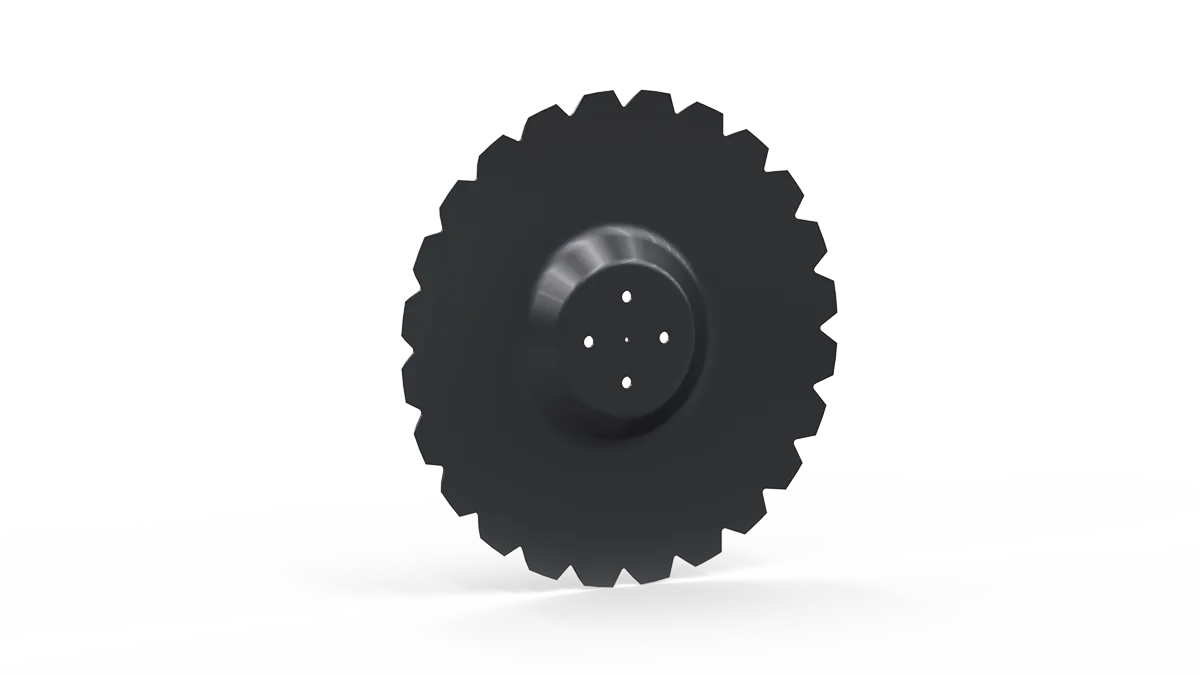

        In standard, 560mm diameter discs with a thickness of 4 mm.

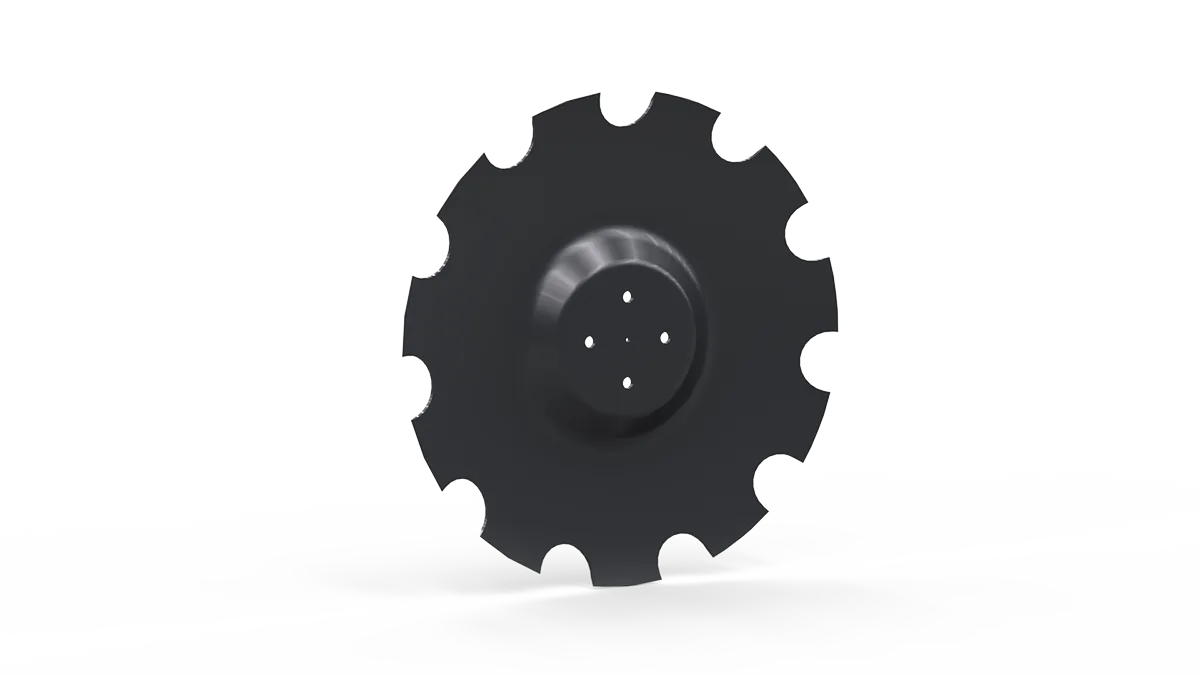

        OPTION: 560mm diameter discs with a thickness of 6 mm and larger cutouts.

        Lights LED – hinged

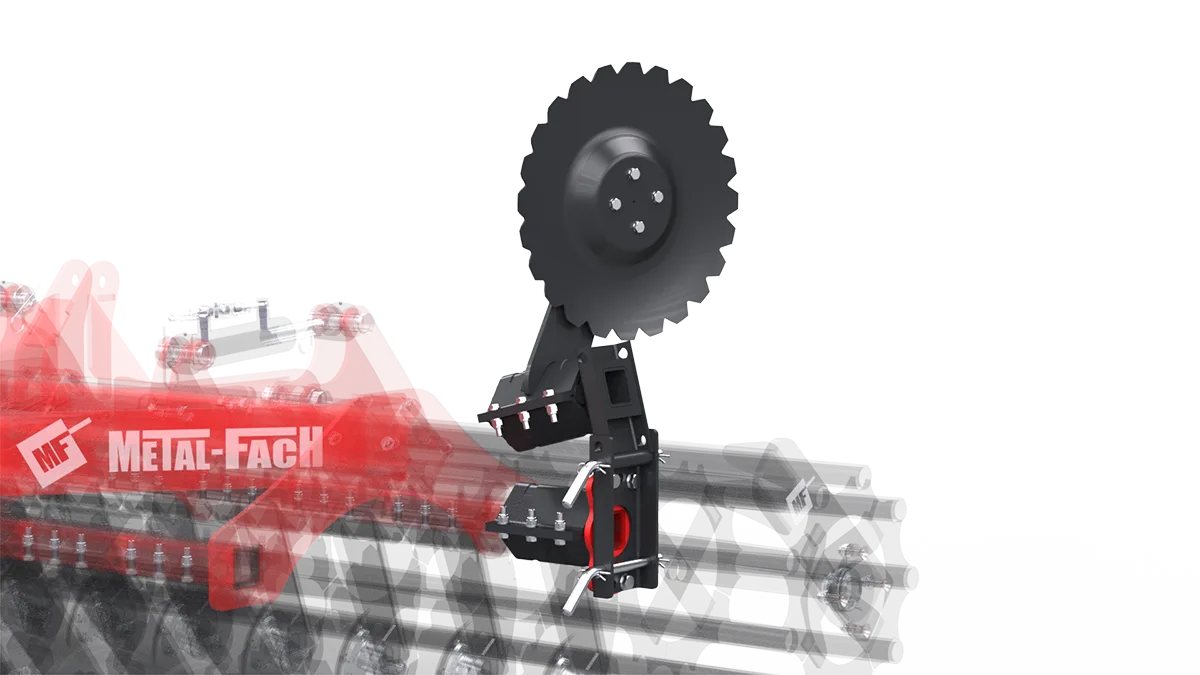

        Folding side supports for transport

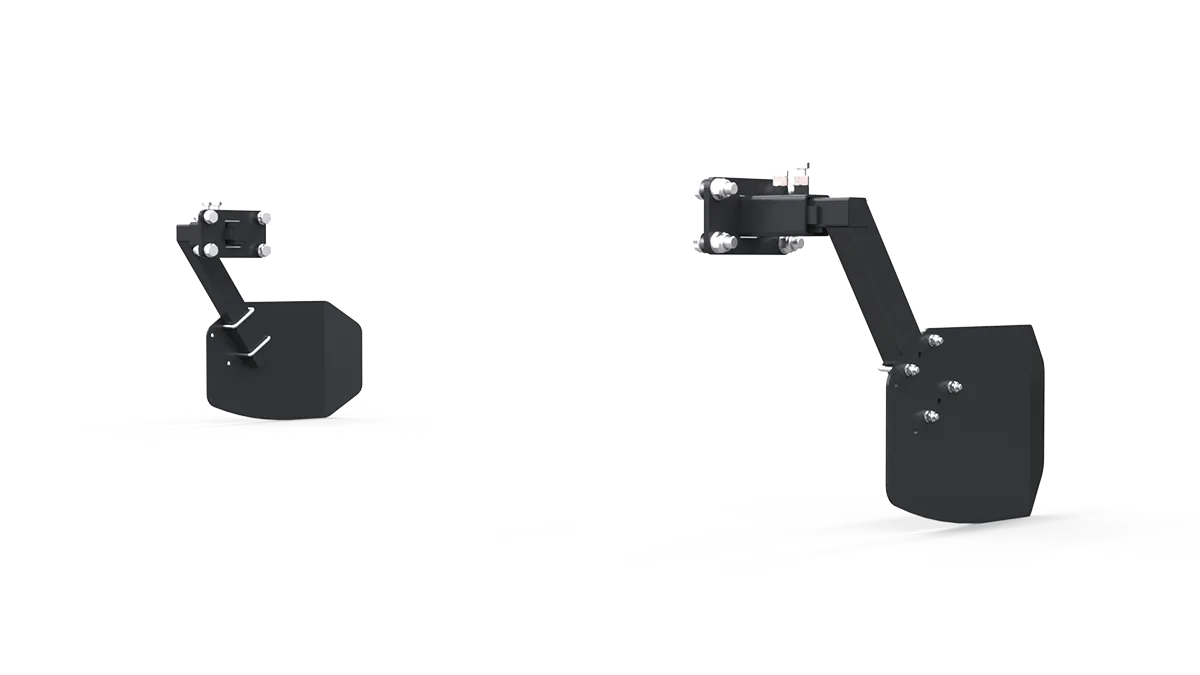

        OPTION: Side screens to limit soil spillage outside the working area

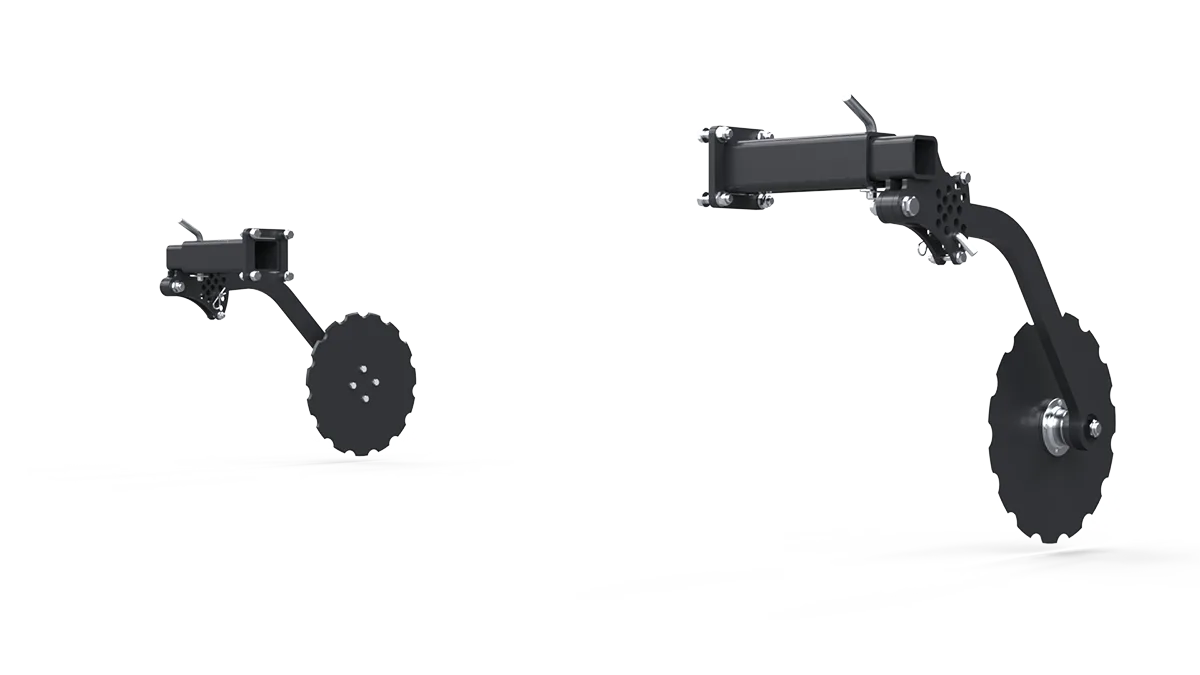

        OPTION: Disc side screens to limit soil spillage outside the working area

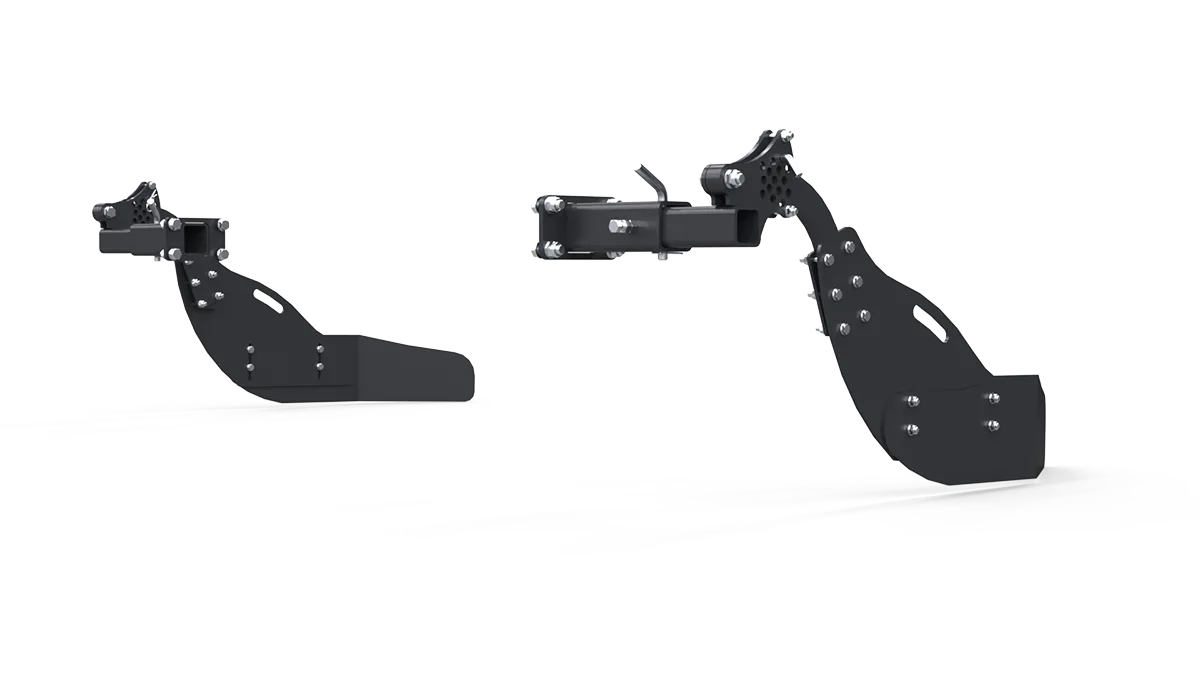

        OPTION: Floating edge screens – to limit soil spillage outside the working area.

        Customise

        Compare and choose your cultivator's colour

        The equipment shown in the photos may vary depending on the version chosen.

        Technical specification

        U740

        Model U740/25 U740/30 U740/35 U740/40 U740/50
        Working width [m]
        2,5
        3,0
        3,5
        4,0
        5,0
        Number of discs main + side [pcs]
        18 + 2
        22 + 2
        26 + 2
        30 + 2
        38 + 2
        Diameter of main discs [mm]
        Ø560 / Ø510
        Ø560 / Ø510
        Ø560 / Ø510
        Ø560 / Ø510
        Ø560 / Ø510
        Disc row spacing [cm]
        80
        80
        80
        80
        80
        Power demand depending on the type of soil [HP]
        80-110
        110-130
        120-150
        140-170
        180-200
        Weight of the unit w/o roller [kg]
        1250
        1420
        1570
        1780
        2230

        Standard equipment

        • 2 rows of discs ø560, edge ø510
        • hydraulic working depth adjustment
        • Rubber shock absorbers
        • Scrapers
        • Maintenance-free SKF hubs / NKE alternatively
        • STRENX arms

        Optional equipment

        • 560mm diameter discs with a thickness of 6 mm and larger cutouts.
        • Side plates
        • Side discs
        • Side discs – floating
        • Lights LED – hinged
        • Pipe roller ø600
        • Packer roller ø500 – U740/30
        • U-box roller ø500 – U740/30, U740/35
        • Double U-box roller – U740/25, U740/20, U740/35, U740/50
        • V-ring roller – U740/25, U740/20, U740/35, U740/50
        • DD heavy roller – U740/25, U740/20, U740/35, U740/50
        • DD HD heavy roller – U740/25, U740/20, U740/35, U740/50
        • String roller – U740/30, U740/35
        • Crushing and kneading roller – U740/25, U740/20, U740/35, U740/50
        • Painting the frame in a color other than the standard – extra charge
