Home / Products / Manure spreaders / N267 HORNET Tandem Manure Spreader

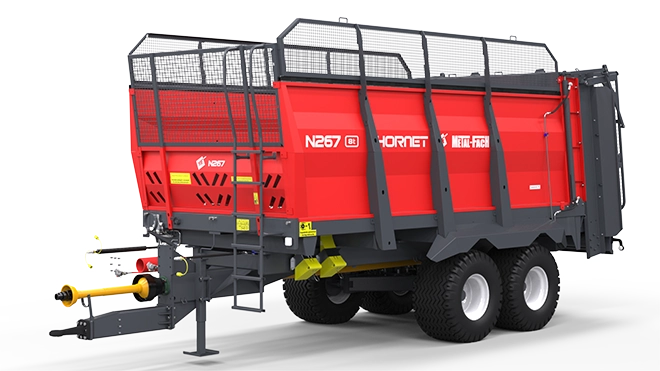

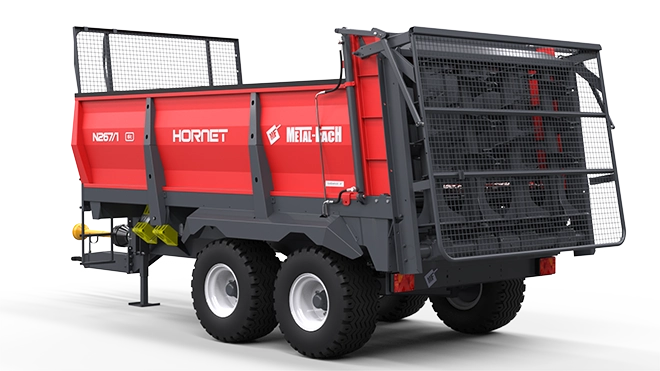

N267 HORNET Tandem Manure Spreader

N267/1 - 6T
N267 - 8T
N267/2 - 10T
N267/3 - 12T

Technical GVW

9150 kg

Technical load capacity

6000 kg

Cargo box capacity

5,8 m³

GVW (EU homologation)

9000 kg*

EU homologated load capacity

6000 – 8350 kg**

Capacity with 0.5m extensions

9,4 m³

Technical GVW

11400 – 11800*** kg

Technical load capacity

8000 kg

Cargo box capacity

9,2 m³

GVW (EU homologation)

10500 kg*

EU homologated load capacity

8000 - 9450kg**

Capacity with 0.5m extensions

13,4 m³

Technical GVW

14000-14400*** kg

Technical load capacity

10000 kg

Cargo box capacity

10,4 m³

GVW (EU homologation)

11000 kg*

EU homologated load capacity

8500 – 9800 kg**

Capacity with 0.5m extensions

14 m³

Technical GVW

18950 kg

Technical load capacity

12000-14280kg***

Cargo box capacity

13 m³

GVW (EU homologation)

14000 kg*

EU homologated load capacity

11000-12950 kg**

Capacity with 0.5m extensions

18,5 m³

Animation 360^o

Take a closer look

Poznaj Taurusa z każdej strony, dzięki animacji 360^o.

Tandem type suspension

VIKING spreaders use tandem spring suspension. The 18T Viking version has a steering axle as a standard.

ideal for hilly and wetter areas
ensures driving comfort and safety
perfect as a transporting vehicle for heavy loads
low centre of gravity, which provides greater stability when driving on rough terrain
loading is quick and efficient (low loading line)

Hydraulically sprung hitch

The hydraulically sprung hitch makes it easy to level out the entire spreader. This hitch reduces the dynamic load on the drawbar eye during operation. This improves the driving comfort when spreading manure.

Hydraulic extensions

The N272 Viking series spreaders are fitted with solid extensions made of 2 mm thick sheet metal, suitably reinforced with steel profiles. The side extensions can be tilted to any side, left or right, depending on which side of the spreader is used for loading. The versatility of these side extensions results from the fact that we can lower the loading height, without having to dismantle the extensions.

Spreading adapter

2-rotor VERTI / ZENI

The N272 Viking manure spreader has a 2-rotor spreading adapter fitted as standard. In response to the changing needs and expectations of modern farms, we have introduced two types of adapters.

1. VERTI vertical adapter with a width of 2.0m. The main working tips are replaceable blades bolted to the rotor segments. When rotating, the rotors shred the material feed and eject it to the back and the sides. The bottom section of the rotors features bladed discs, which increase the spreading width of the material.

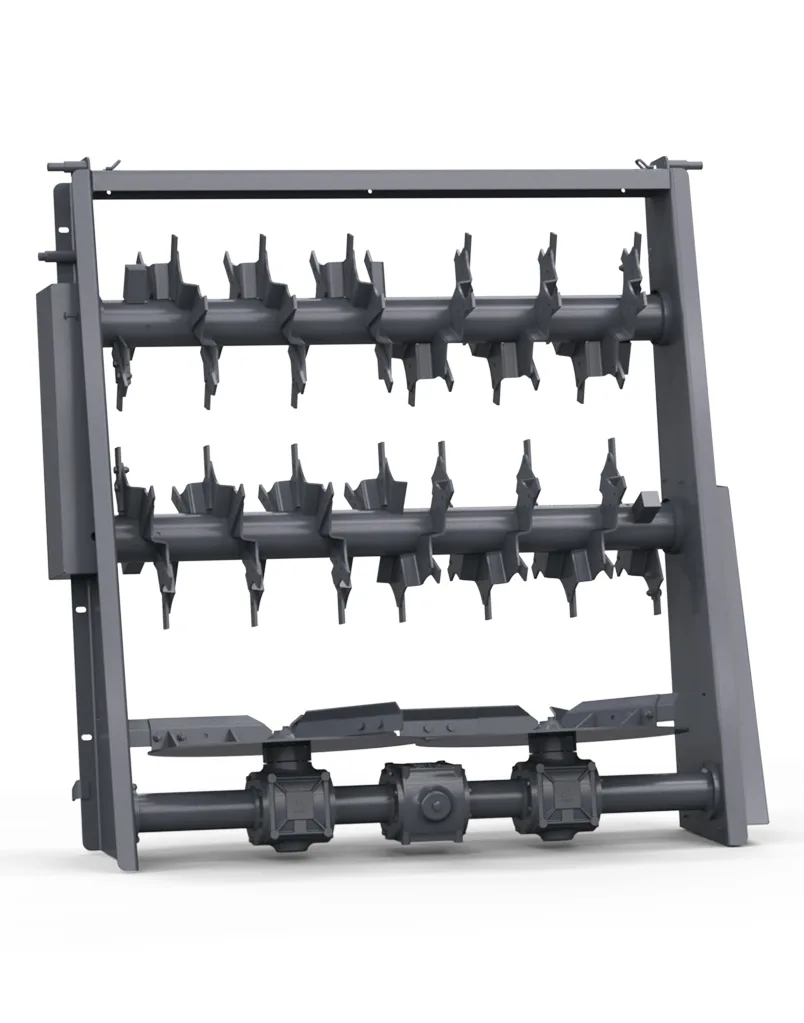

2. ZENI horizontal disc adapter.

Adapter tarczowo-poziomy ZENI

W rozrzutnikach N272 Taurus można zamontować adapter tarczowo-poziomy 2-wirnikowy ZENI. W dolnej części znajduje się przekładnia, na której są osadzone talerze rozrzucające. Głównymi narzędziami roboczymi są wymienne ostrza przykręcone do poziomych wirników. Wirniki, obracając się rozdrabniają podawany materiał, który jest kierowany przez osłonę adaptera na talerze rozrzucające. Obracające się talerze wyrzucają rozdrobniony materiał do tyłu i na boki.

szerokość rozrzutu – do 8m zakres roboczy; 12m – zakres pasa rozrzutu
materiał jest rozdrabniany na wirnikach poziomych przy zamkniętej klapie tylnej, a następnie opada na talerze dolne, które są w stanie rozrzucić dany materiał
dobrze się pracuje przy przefermentowanym oborniku
głębiej i niżej ustawione talerze dolne, dzięki czemu materiał jest lepiej rozdrobniony
dodana jest guma zabezpieczająca przy wałku (obornik nie jest wciągany pod spód rozrzutnika)
dodane jest centralne smarowanie do wszystkich punktów, w których niezbędne jest smarowanie
posiada łatwy demontaż adaptera. Hydraulika odpinana jest za pomocą dwóch szybko-złączy EURO

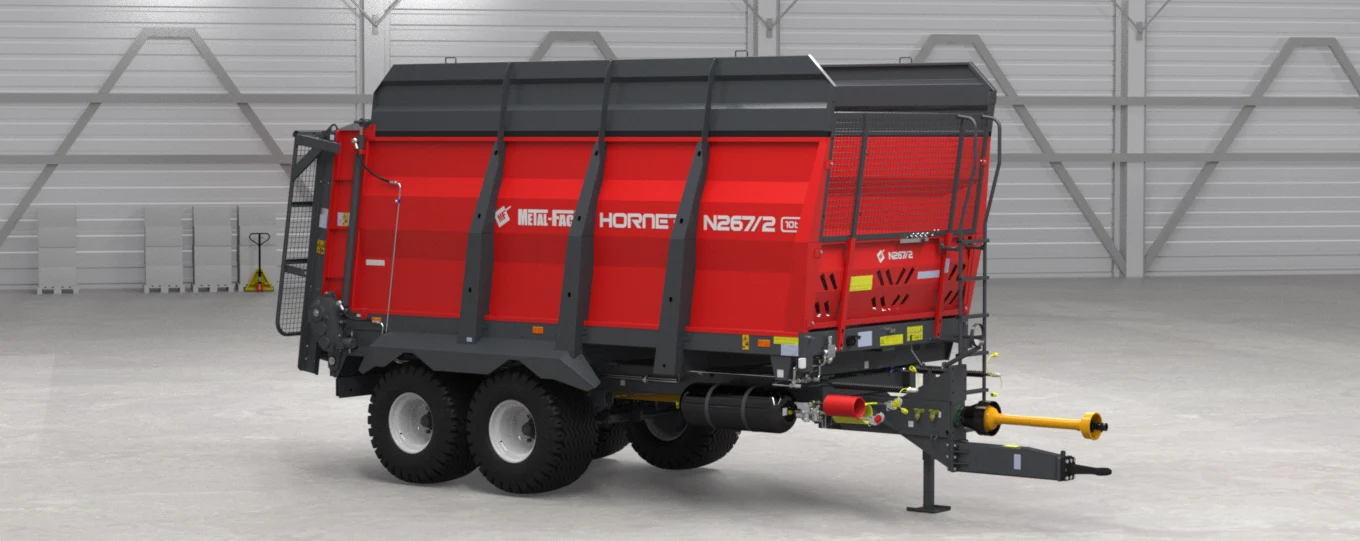

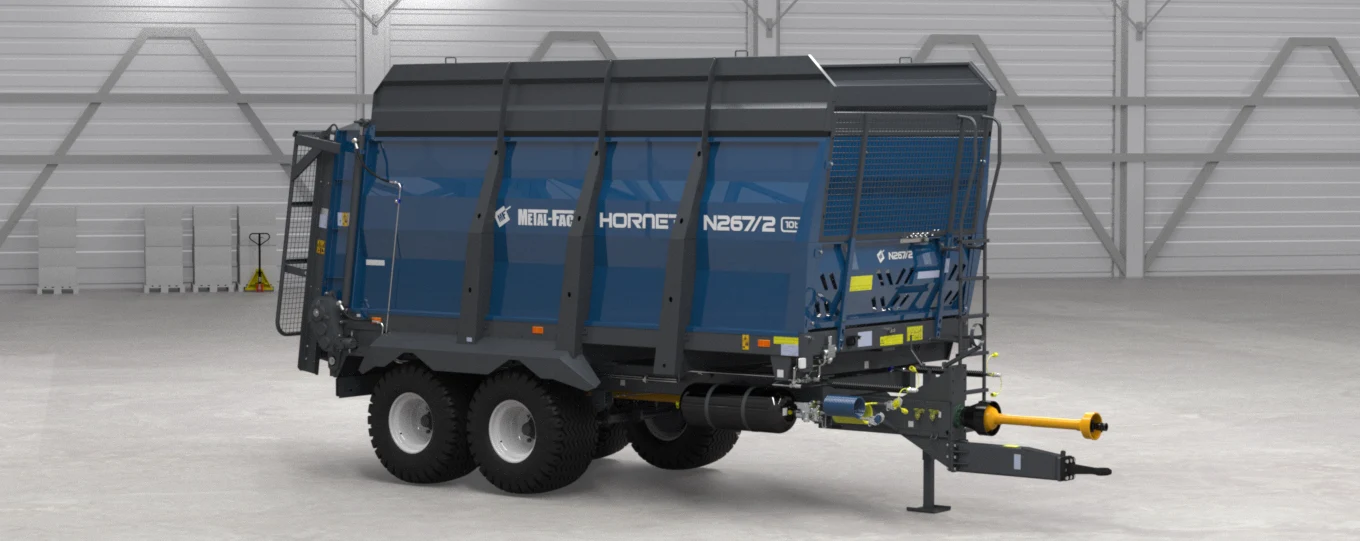

Customise

Compare and choose your spreader’s colour

The equipment shown in the photos may vary depending on the version chosen.

Technical specification

Hornet

Model of machine	N267/1	N267/1
Type of homologation	-	EU
Transport speed (max.) [km/h]	30	40
Technical GVW [kg]	9150	9000*
GVW [kg]	9150	9000*
Technical load capacity (field) [kg]	6000	6000 - 8350**
Transport load capacity [kg]	6000	6000 - 8350**
Weight [kg]	3150	3150 - 3800***
Vertical load on the hitch eye (max) [kg]	1430	2500
Cargo box capacity (without extensions/extensions 0.5m) [m³]	5,8 / 9,4	5,8 / 9,4
Length / Width / Height of the cargo space [mm]	3600 / 2000 / 800	3600 / 2000 / 800
Overall dimensions without extensions Length / Width / Height [mm] ****	5390 / 2365 / 2700	5390 / 2365 / 2700
Height of the cargo floor from the ground [mm] ****	1300	1300
Loading height [mm] ****	2100	2100
Tires****	400-60/15,5	400-60/15,5
Power requirements (min.) [KM]	70	70

Model of machine	N267	N267
Type of homologation	-	EU
Transport speed (max.) [km/h]	30	40
Technical GVW [kg]	11400 - 11800	10500*
GVW [kg]	11400 - 11800	10500*
Technical load capacity (field) [kg]	8000	8000 - 9450**
Transport load capacity [kg]	8000	8000 - 9450**
Weight [kg]	3400 - 3800***	3550 - 4850***
Vertical load on the hitch eye (max) [kg]	2500	2500
Cargo box capacity (without extensions/extensions 0.5m) [m³]	9,2 / 13,4	9,2 / 13,4
Length / Width / Height of the cargo space [mm]	4000 / 2000 / 1150	4000 / 2000 / 1150
Overall dimensions without extensions Length / Width / Height [mm] ****	6450 / 2420 / 2800	6450 / 2420 / 2800
Height of the cargo floor from the ground [mm] ****	1370	1370
Loading height [mm] ****	2520	2520
Tires****	500-50/17	500-50/17
Power requirements (min.) [KM]	80	80

Model of machine	N267/2	N267/2
Type of homologation	-	EU
Transport speed (max.) [km/h]	30	40
Technical GVW [kg]	14000-14440	12500*
GVW [kg]	14000-14440	11000*
Technical load capacity (field) [kg]	10000	10000 - 11300**
Transport load capacity [kg]	10000	8500 - 9800**
Weight [kg]	4000 - 4440	3700 - 5000***
Vertical load on the hitch eye (max) [kg]	2500	2500
Cargo box capacity (without extensions/extensions 0.5m) [m³]	10,4 / 14	10,4 / 14
Length / Width / Height of the cargo space [mm]	4000 / 2000 / 1300	4000 / 2000 / 1300
Overall dimensions without extensions Length / Width / Height [mm] ****	6680 / 2420 / 2800	6680 / 2420 / 2800
Height of the cargo floor from the ground [mm] ****	1275	1275
Loading height [mm] ****	2575	2575
Tires****	500-50/17	500-50/17
Power requirements (min.) [KM]	90	90

Model of machine	N267/3
Type of homologation	EU
Transport speed (max.) [km/h]	40
Technical GVW [kg]	15950*
GVW [kg]	14000*
Technical load capacity (field) [kg]	12000 - 14280**
Transport load capacity [kg]	11000 - 12330**
Weight [kg]	4670 - 6000***
Vertical load on the hitch eye (max) [kg]	3000
Cargo box capacity (without extensions/extensions 0.5m) [m³]	13 / 18,5
Length / Width / Height of the cargo space [mm]	5000 / 2000 / 1300
Overall dimensions without extensions Length / Width / Height [mm] ****	7900 / 2550 / 2820
Height of the cargo floor from the ground [mm] ****	1380
Loading height [mm] ****	2680
Tires****	500-50/17 18PR
Power requirements (min.) [KM]	110

* In European homologation, conducted according to EU Regulation 167/2013, only axle loads are specified as GVW
** The load capacity for EU homologation is calculated using the formula:
GVW + Hitch load - Tare weight = Load capacity
*** depending on the equipment
**** standard equipment

Standard equipment

Side walls protected with rubber strips
Cargo box latch
Vertical adapter
Ladder
PTO shaft
wheels 400/60-15, 5 – N267/1
wheels 500/50-17 – N267, N267/2, N267/3
1-line pneumatic brakes – N267/1, N267
2-line pneumatic brakes – N267/2, N267/3
2-Section hydraulics
Drawbar eye ø50 fixed
Set of fenders
Wheel chocks
Tandem suspension, non-sprung (independent swing arms) – version without homologation – N267/1, N267
Tandem suspension, sprung – N267/2, N267/3

Optional equipment

Extension 0,5m (full)
Extension 0,5m (net)
Mechanical deflectors (flaps, covers) for manure spreading direction (verti X4)
Hydraulic brakes – extra charge
Automatic brake force regulator – ALB valve – extra charge* – required for EU approval
2-line pneumatic brakes – extra charge* – N267/1, N267
Wheels 500/50-17″” – extra charge* – N267/1
Drawbar eye Ø 40 – extra charge*
Rotary drawbar eye Ø50 – extra charge*
Ball drawbar eye K80 – extra charge*
Wide-angle PTO shaft – extra charge*
Electronic precise floor control (knob for smooth speed control)
Electronically controlled floor (wired remote control +/-)
2-section divider with hydraulics, set – extra charge*
Extra charge for EU approval
Color other than standard – extra charge

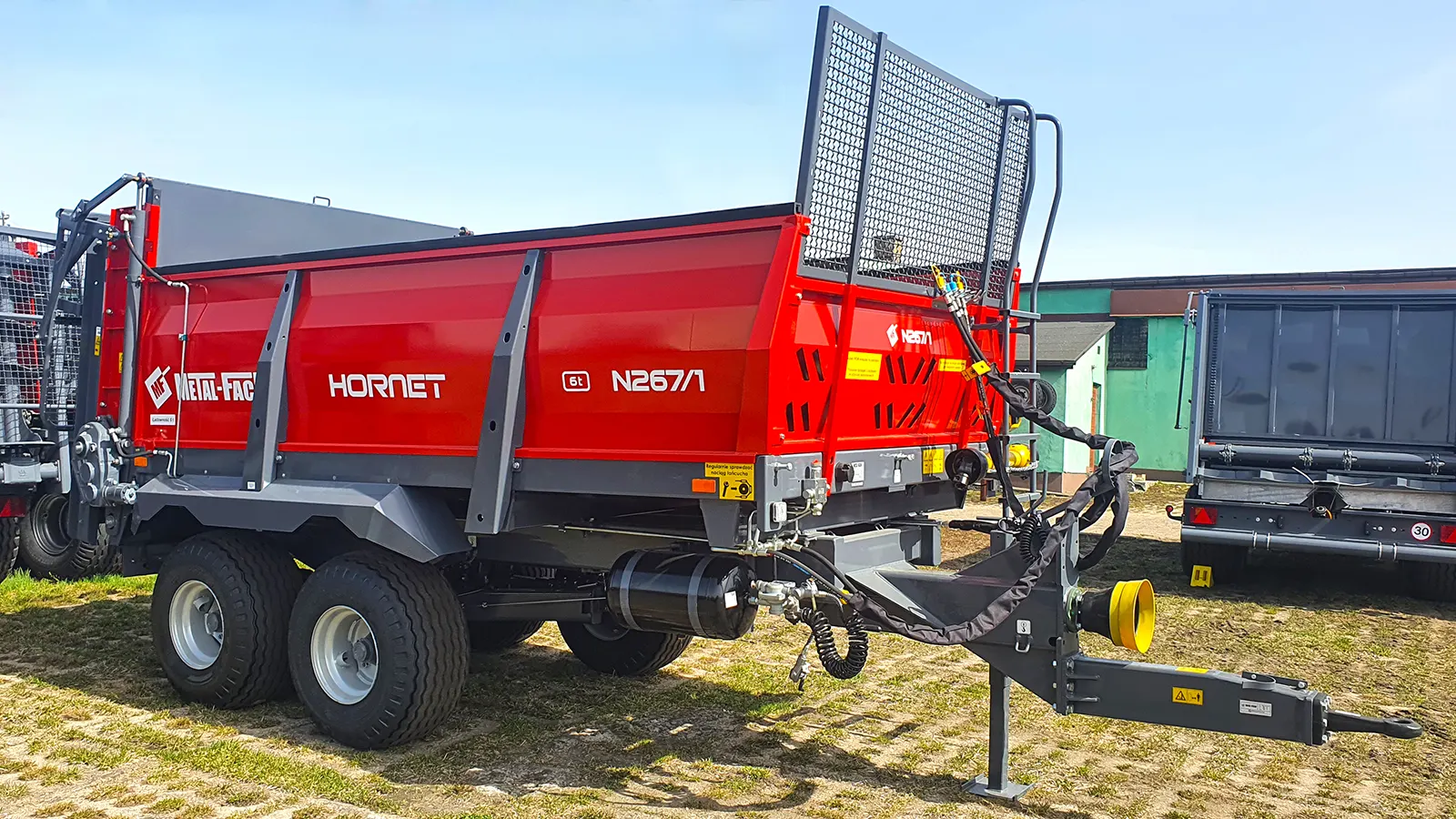

Photo gallery

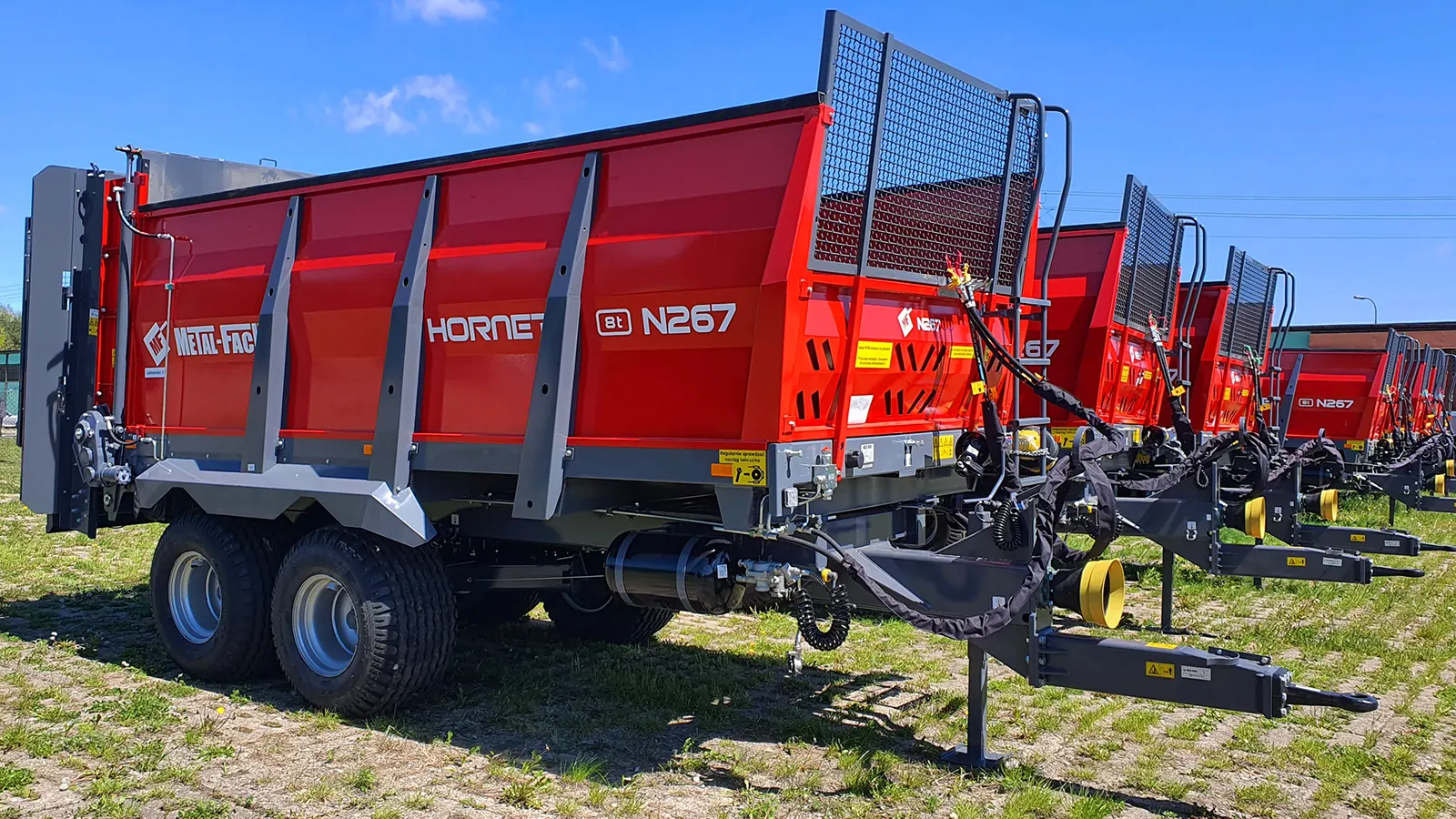

HORNET Manure spreader

Przejdź do pełnej galerii

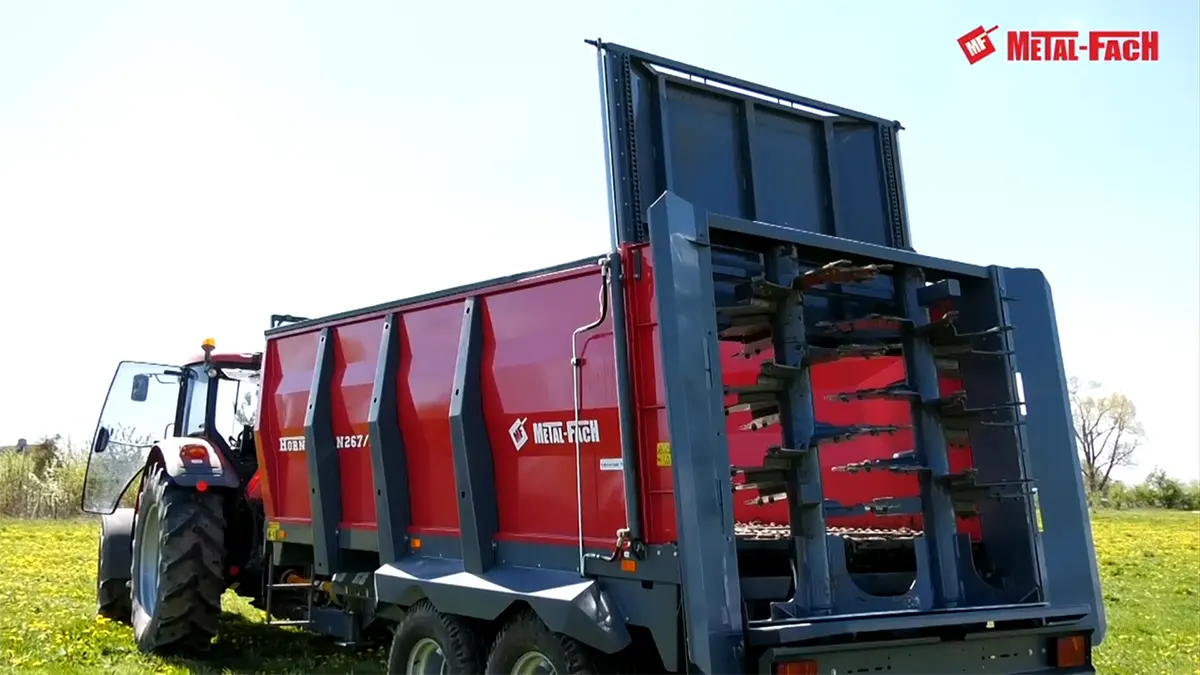

Video

HORNET Manure spreader

Watch all videos

Play

Downloads

Download materials

Instructions Manual N267 HORNET

Spare parts catalogue N267 HORNET - 2016 - till today

Spare parts catalogue N267 HORNET - 2009 - 2016

Guarantee Certificate - Manure Spreader MF

Sales tools

Interested in a product?

Find a Dealer

Find the nearest dealership or service centre.

Download the catalogue

Get more information about the agricultural machine of your choice.

Other models in our range

N280 Batalion

Load capacity 6; 8; 10 T

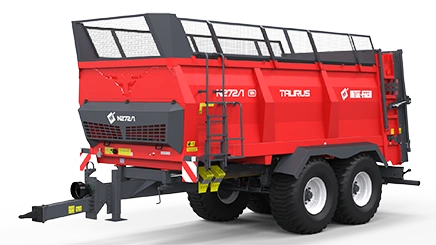

N272 Taurus
