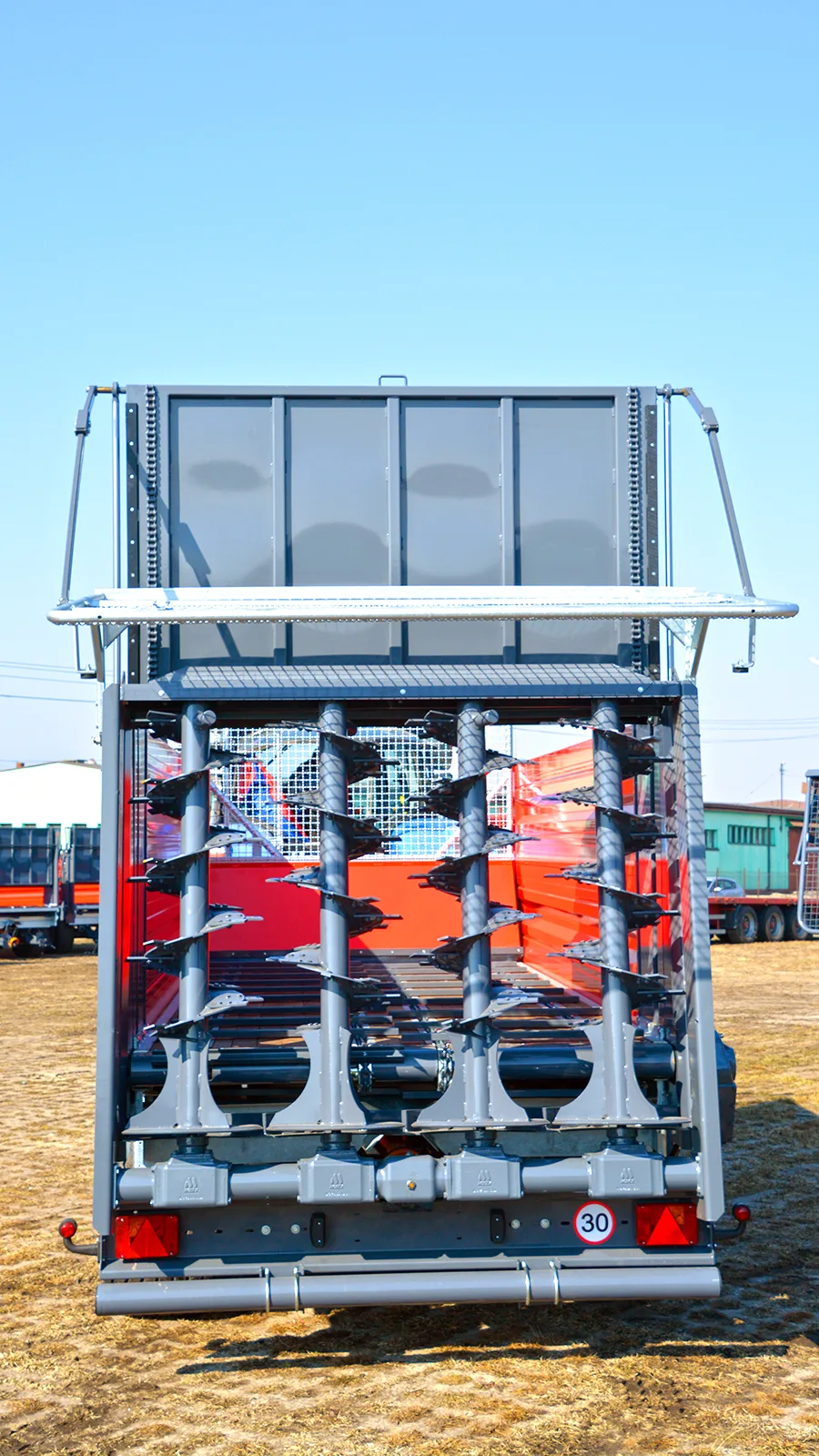

Rozrzutnik obornika N280 BATALION z szeroką skrzynią ładunkową wyposażony w czterowirnikowy adapter pionowy nachylony do przodu, gwarantuje szeroki i równomierny rozrzut obornika.
Batalion
Batalion
Home / Products / Manure spreaders /

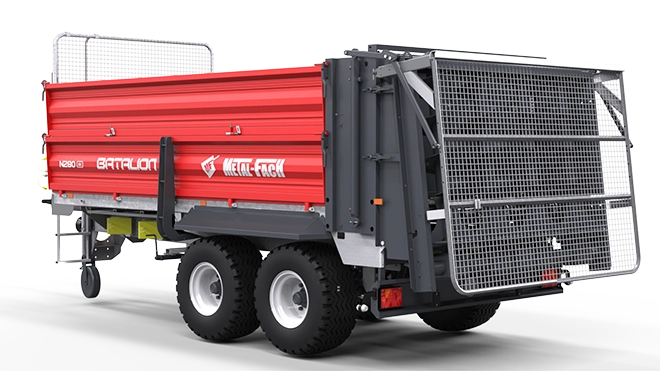

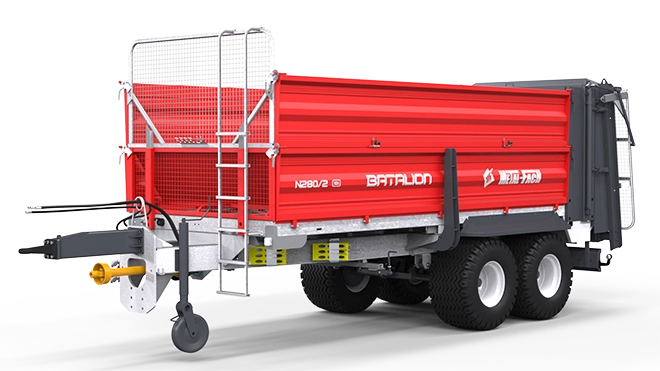

N280 BATALION Tandem Manure Spreader
Technical GVW
9280 kg
Technical load capacity
6000 kg
Cargo box capacity
8,1 m3
GVW (EU homologation)
9000 kg*
EU homologated load capacity
6000-8400 kg**
–
Technical GVW
11460 kg
Technical load capacity
8000 kg
Cargo box capacity
8,9 m3
GVW (EU homologation)
10400 kg*
EU homologated load capacity
8000-9420 kg**
–
Technical GVW
13660 kg
Technical load capacity
10000 kg
Cargo box capacity
10,8 m3
GVW (EU homologation)
11000 kg*
EU homologated load capacity
8900-9820 kg**
–
Animation 360o
Take a closer look
Poznaj Taurusa z każdej strony, dzięki animacji 360o.
Tandem type suspension
VIKING spreaders use tandem spring suspension. The 18T Viking version has a steering axle as a standard.
- ideal for hilly and wetter areas
- ensures driving comfort and safety
- perfect as a transporting vehicle for heavy loads
- low centre of gravity, which provides greater stability when driving on rough terrain
- loading is quick and efficient (low loading line)
Hydraulically sprung hitch
The hydraulically sprung hitch makes it easy to level out the entire spreader. This hitch reduces the dynamic load on the drawbar eye during operation. This improves the driving comfort when spreading manure.

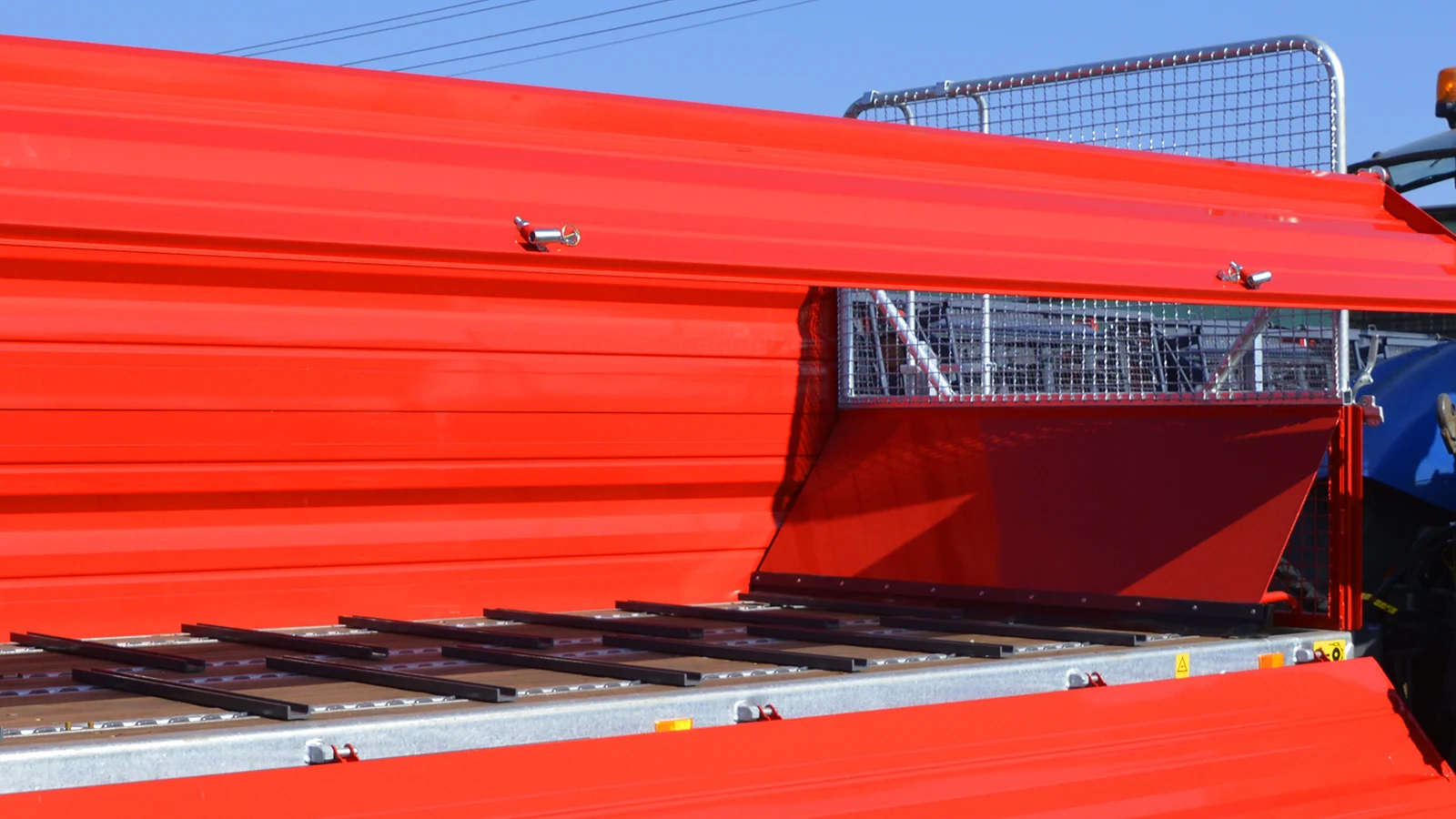

Hydraulic extensions
The N272 Viking series spreaders are fitted with solid extensions made of 2 mm thick sheet metal, suitably reinforced with steel profiles. The side extensions can be tilted to any side, left or right, depending on which side of the spreader is used for loading. The versatility of these side extensions results from the fact that we can lower the loading height, without having to dismantle the extensions.
Spreading adapter
2-rotor VERTI / ZENI
The N272 Viking manure spreader has a 2-rotor spreading adapter fitted as standard. In response to the changing needs and expectations of modern farms, we have introduced two types of adapters.
1. VERTI vertical adapter with a width of 2.0m. The main working tips are replaceable blades bolted to the rotor segments. When rotating, the rotors shred the material feed and eject it to the back and the sides. The bottom section of the rotors features bladed discs, which increase the spreading width of the material.
2. ZENI horizontal disc adapter.
Adapter tarczowo-poziomy ZENI
W rozrzutnikach N272 Taurus można zamontować adapter tarczowo-poziomy 2-wirnikowy ZENI. W dolnej części znajduje się przekładnia, na której są osadzone talerze rozrzucające. Głównymi narzędziami roboczymi są wymienne ostrza przykręcone do poziomych wirników. Wirniki, obracając się rozdrabniają podawany materiał, który jest kierowany przez osłonę adaptera na talerze rozrzucające. Obracające się talerze wyrzucają rozdrobniony materiał do tyłu i na boki.
- szerokość rozrzutu – do 8m zakres roboczy; 12m – zakres pasa rozrzutu
- materiał jest rozdrabniany na wirnikach poziomych przy zamkniętej klapie tylnej, a następnie opada na talerze dolne, które są w stanie rozrzucić dany materiał
- dobrze się pracuje przy przefermentowanym oborniku
- głębiej i niżej ustawione talerze dolne, dzięki czemu materiał jest lepiej rozdrobniony
- dodana jest guma zabezpieczająca przy wałku (obornik nie jest wciągany pod spód rozrzutnika)
- dodane jest centralne smarowanie do wszystkich punktów, w których niezbędne jest smarowanie
- posiada łatwy demontaż adaptera. Hydraulika odpinana jest za pomocą dwóch szybko-złączy EURO

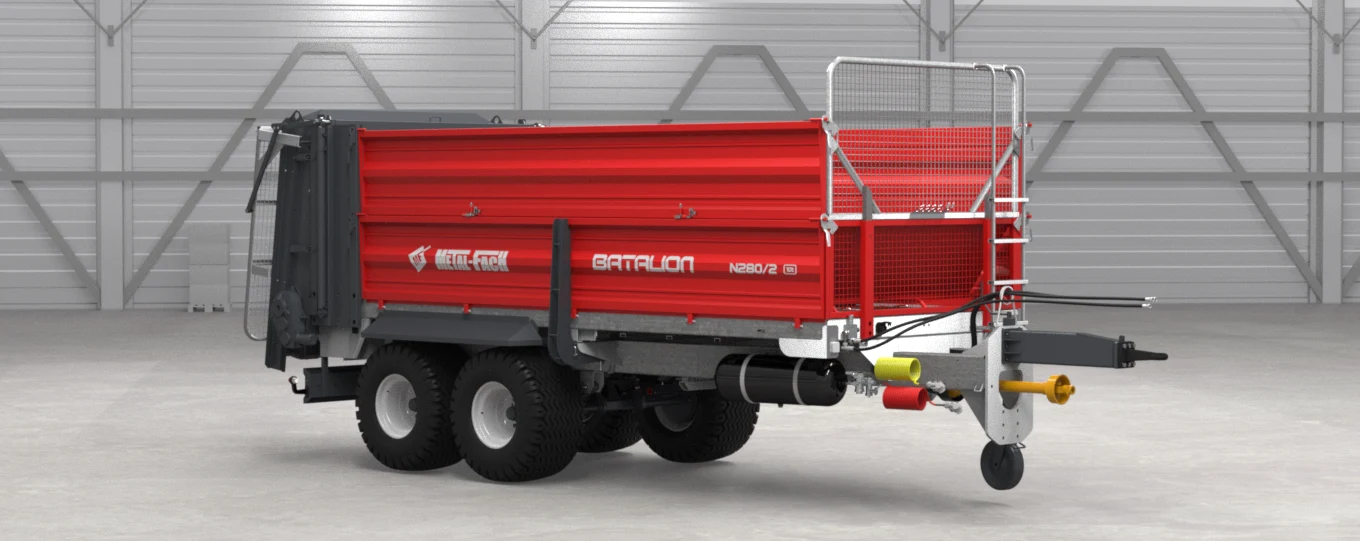

Customise
Compare and choose your spreader’s colour
The equipment shown in the photos may vary depending on the version chosen.
Technical specification
Batalion
| Model of machine | N280 | N280 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 40 |
| Technical GVW [kg] | 9280 | 9000* |
| GVW [kg] | 9280 | 9000* |
| Technical load capacity (field) [kg] | 6000 | 6000 - 8400** |
| Transport load capacity [kg] | 6000 | 6000 - 8400** |
| Weight [kg] | 2380 | 3100 - 3850*** |
| Vertical load on the hitch eye (max) [kg] | 1280 | 2500 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 8,1 | 8,1 |
| Length / Width / Height of the cargo space [mm] | 4120 / 1960 / 1000 | 4120 / 1960 / 1000 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 6670 / 2350 / 2680 | 6670 / 2350 / 2680 |
| Height of the cargo floor from the ground [mm] **** | 1175 | 1175 |
| Loading height [mm] **** | 2150 | 2150 |
| Tires**** | 400/60-15,5 | 400/60-15,5 |
| Power requirements (min.) [KM] | 70 | 70 |
| Model of machine | N280/1 | N280/1 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 40 |
| Technical GVW [kg] | 11460 | 10400* |
| GVW [kg] | 11460 | 10400* |
| Technical load capacity (field) [kg] | 8000 | 8000 - 9420** |
| Transport load capacity [kg] | 8000 | 8000 - 9420** |
| Weight [kg] | 3460 | 3480 - 4400*** |
| Vertical load on the hitch eye (max) [kg] | 1560 | 2500 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 8,9 | 8,9 |
| Length / Width / Height of the cargo space [mm] | 4120 / 1960 / 1100 | 4120 / 1960 / 1100 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 6670 / 2350 / 2800 | 6670 / 2350 / 2800 |
| Height of the cargo floor from the ground [mm] **** | 1190 | 1190 |
| Loading height [mm] **** | 2250 | 2250 |
| Tires**** | 500/50-17 | 500/50-17 |
| Power requirements (min.) [KM] | 80 | 80 |
| Model of machine | N280/2 | N280/2 |
|---|---|---|
| Type of homologation | - | EU |
| Transport speed (max.) [km/h] | 40 | 40 |
| Technical GVW [kg] | 13660 | 11180-12100* |
| GVW [kg] | 13660 | 11000* |
| Technical load capacity (field) [kg] | 10000 | 10000** |
| Transport load capacity [kg] | 10000 | 8900 - 9820** |
| Weight [kg] | 3660 | 3680 - 4600*** |
| Vertical load on the hitch eye (max) [kg] | 1710 | 2500 |
| Cargo box capacity (without extensions/extensions 0.5m) [m3] | 10,8 | 10,8 |
| Length / Width / Height of the cargo space [mm] | 4620 / 1960 / 1200 | 4620 / 1960 / 1200 |
| Overall dimensions without extensions Length / Width / Height [mm] **** | 7100 / 2350 / 2790 | 7100 / 2350 / 2790 |
| Height of the cargo floor from the ground [mm] **** | 1190 | 1190 |
| Loading height [mm] **** | 2350 | 2350 |
| Tires**** | 500/50-17 | 500/50-17 |
| Power requirements (min.) [KM] | 90 | 90 |
* In European homologation, conducted according to EU Regulation 167/2013, only axle loads are specified as GVW
** The load capacity for EU homologation is calculated using the formula:
GVW + Hitch load - Tare weight = Load capacity
*** depending on the equipment
**** standard equipment
Standard equipment
- Cargo box latch
- Ladder
- drawbar eye Ø40mm fixed
- PTO shaft
- 2-line pneumatic breaks
- Set of fenders
- wheels 400/60-15,5 – N280
- wheels 500/50-17″ – N280/1 and N280/2
- 2-Section hydraulics
- Wheel chocks
- Underrun protection rear beam
Optional equipment
- Mechanical deflectors (flaps, covers) for manure spreading direction
- Hydraulic brakes – extra charge
- Over-run brake
- Automatic brake force regulator – ALB valve – extra charge* – required for EU approval
- Wheels 500/50-17″ (N280) – extra charge*
- Wide-angle PTO shaft – extra charge*
- Electronic precise floor control (knob for smooth speed control)
- Electronically controlled floor (wired remote control +/-)
- Extra charge for EU approval
- Color other than standard – extra charge

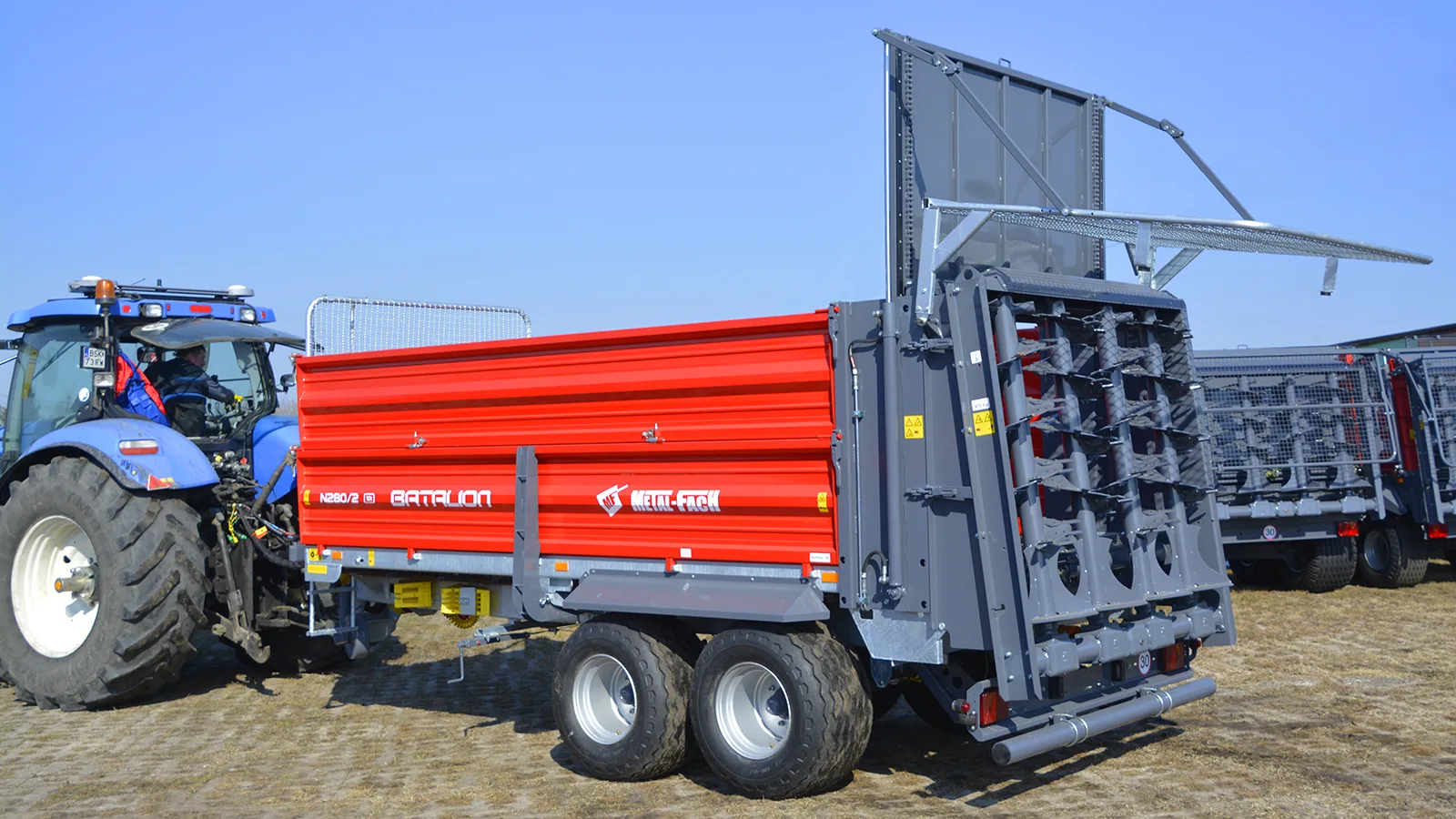

Photo gallery

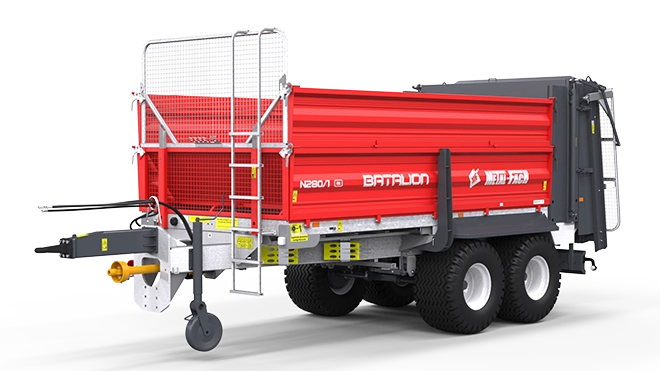

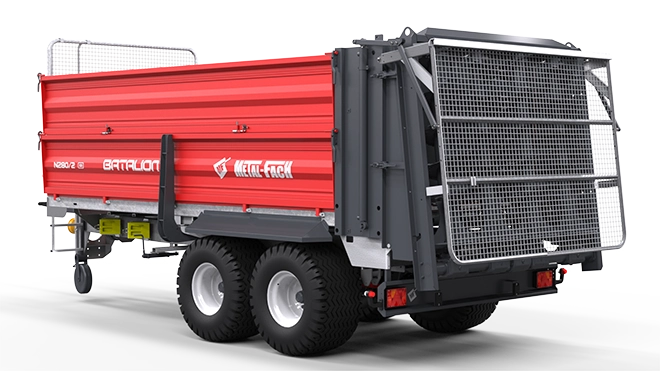

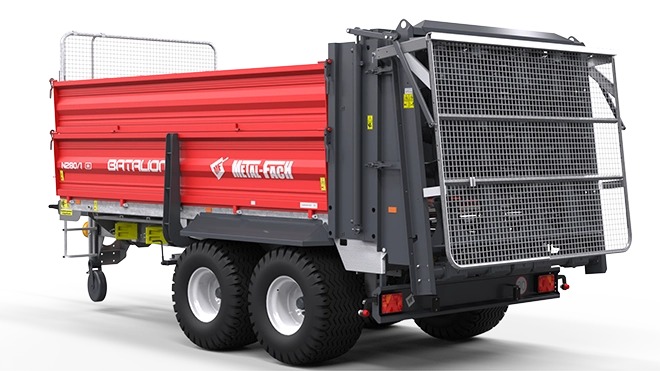

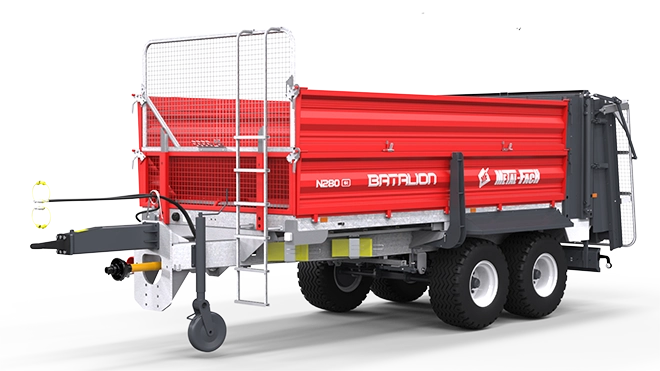

Batalion spreader
Previous
Next

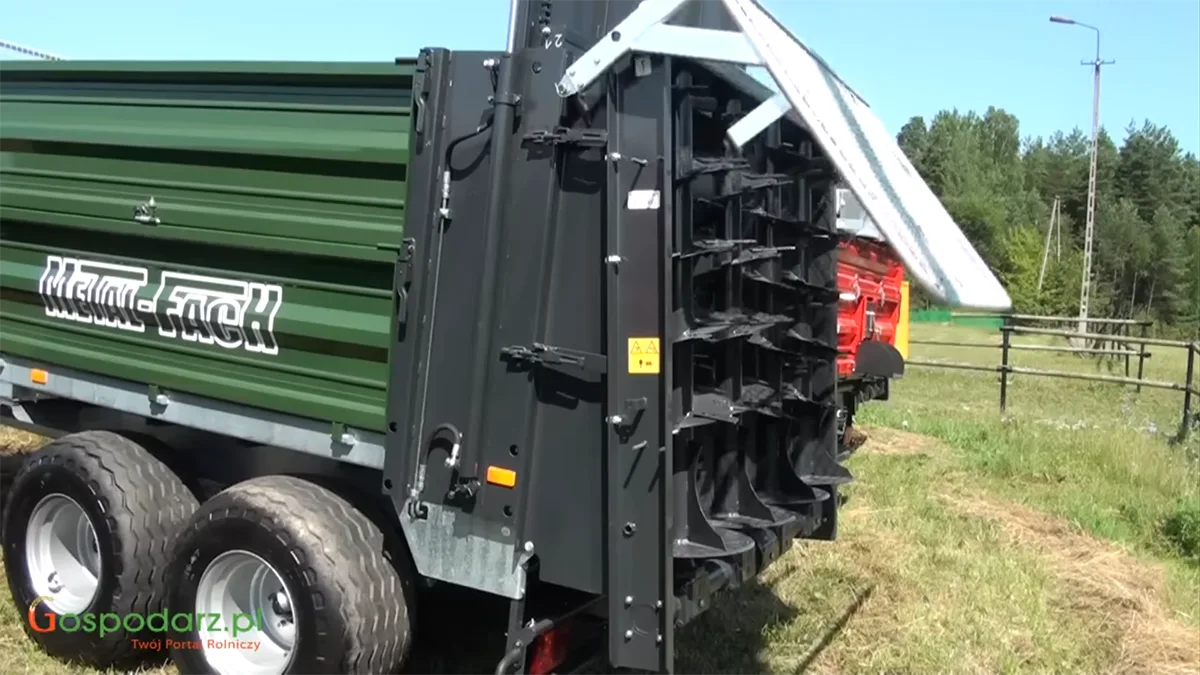

Video
